Vishay Semiconductors TLMx1000 & TLMx1100 0603 LEDs

Vishay Semiconductors TLMx1000 and TLMx1100 0603 LEDs are housed in a small 0603 SMD package. The 0603 technology enables smaller products of higher performance, design flexibility, and enhanced applications. The Vishay TLMx1000 and TLMx1100 0603 LEDs are AEC-Q101 qualified and ideally suited for small-scale, high-power products intended to work in demanding environments.

Features

Small SMD package 0603 with exceptional brightness, 1.6mm x 0.8mm x 0.6mm (LxWxH)
High-reliability lead frame based
Footprint compatible with 0603 chipled
AllnGaP and GaN technology
Compatible with IR reflow soldering

Grouping parameters of luminous intensity, wavelength
Available in 8mm tape
Compatible with IR reflow soldering
Preconditioning according to JEDEC® level 2
AEC-Q101 qualified

Applications

Backlight keypads
Navigation systems
Cellular phone displays
Displays for industrial control systems

Automotive features
Miniaturized color effects
Traffic displays

Specifications

±80° Angle of half intensity
Extremely wide, 160° viewing angle
Temperature range of -40°C to +100°C

Wavelength 570nm (green), 561nm (pure green), 589nm (yellow), 606nm (orange), and 633nm (red)

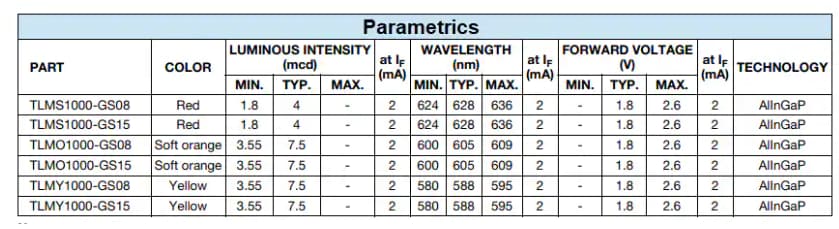

TLMx1000 Parametics

Chart - Vishay Semiconductors TLMx1000 & TLMx1100 0603 LEDs

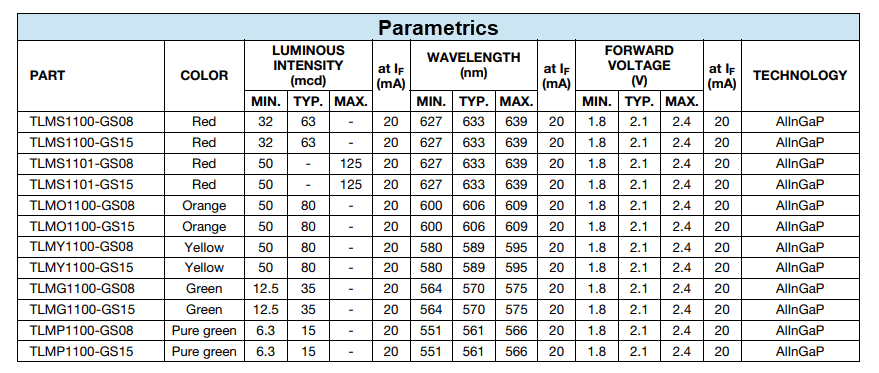

TLMx1100 Parametics

Chart - Vishay Semiconductors TLMx1000 & TLMx1100 0603 LEDs

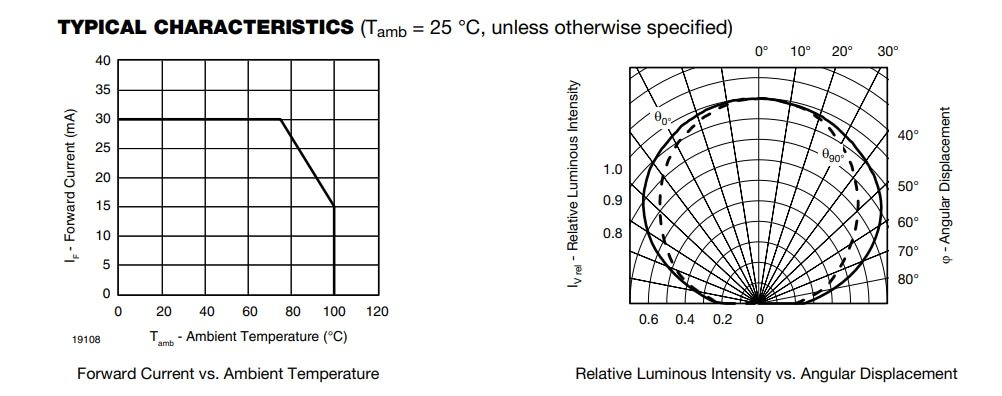

Performance Graph - Vishay Semiconductors TLMx1000 & TLMx1100 0603 LEDs
