Vishay Semiconductors SEP4512 Phase Leg High Voltage Standard Rectifiers

Vishay Semiconductors SEP4512 Phase Leg High Voltage Standard Rectifiers feature low forward conduction, high surge current capability, and high junction temperature capability. The devices offer a 1200V maximum repetitive peak reverse voltage and phase leg circuit configuration. The Vishay SEP4512 rectifiers are specified at -55°C to +175°C temperature range and housed in a TO-247AD 3L package.

Features

Oxide planar chip junction
Low forward conduction
High surge current capability
High avalanche capability
High junction temperature capability

Solder bath temperature +275°C maximum, 10s per JESD 22-B106
AEC-Q101 qualified available:
- Automotive ordering code: base P/NHM3

Applications

OBC for EV/HEV
Single or three-phase bridge rectification
Industrial inverter power

Specifications

1200V maximum repetitive peak reverse voltage
45A maximum average forward rectified current per device
480A peak forward surge current, 10ms single half sine-wave
Phase leg circuit configuration

TO-247AD 3L package
-55°C to +175°C operating junction and storage temperature range

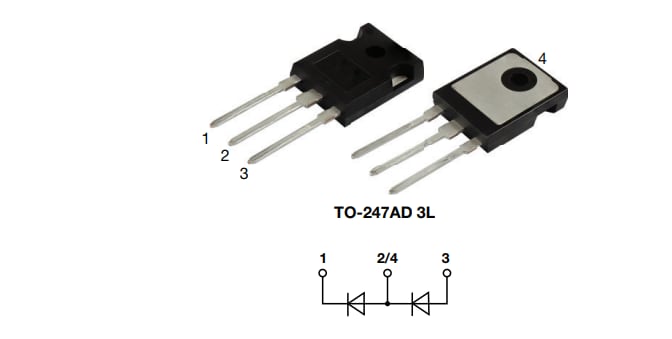

Package Style
