Vishay Semiconductors LVE1560E/LVE2560E Bridge Rectifiers

Vishay Semiconductors LVE1560E/LVE2560E Bridge Rectifiers feature low forward voltage drop, low noise, and high surge current capability. The Vishay LVE1560E/LVE2560E rectifiers offer a maximum 600V repetitive peak reverse voltage, a junction temperature of -55°C to +150°C, and are available in a thin single in-line package. The devices are ideal for general-purpose use in AC/DC bridge full wave rectification for switching power supplies, home appliances, and white-goods applications, especially for telecom power supplies, high-efficiency desktop PCs, and server SMPS.

Features

UL recognition file number E312394
Thin single in-line package
Oxide planar chip junction
Low forward voltage drop

High surge current capability
Low noise
High case dielectric strength of 2500V_RMS, 1 minute
Solder dip +275°C maximum for 10s, per JESD 22-B106

Applications

General purpose use in AC/DC bridge full wave rectification
- Switching power supplies
- Home appliances
- White-goods applications

Telecom power supplies
- High-efficiency desktop PC
- Server SMPS

Specifications

600V maximum repetitive peak reverse voltage
15A (LVE1560E), 25A (LVE2560E) maximum average forward rectified output current
250A (LVE1560E), 360A (LVE2560E) non-repetitive peak forward surge current

10μA reverse current per diode
GSIB-5S package
In-line circuit configuration

Vishay Semiconductors LVE1560E/LVE2560E Bridge Rectifiers

Features

Applications

Specifications

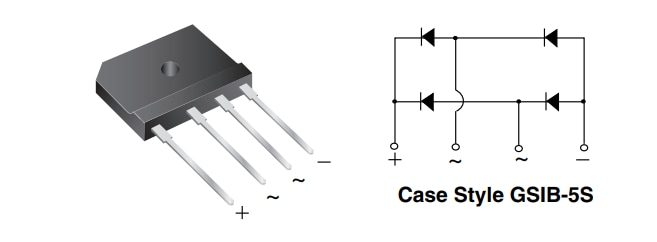

Package Style
