Vishay / Roederstein MKP1848Se DC-Link Film Capacitors

Vishay / Roederstein MKP1848Se DC-Link Film Capacitors are low-height THB and automotive-grade film capacitors. These capacitors feature a high ripple current capability, low ESR, low ESL, and radial mounting. Vishay Metallized Polypropylene Film Capacitors feature capacitance ratings from 1μF to 75μF, voltage ratings from 500V to 1200V, and tolerances of 5% and 10%. Suitable applications include EV power converters, onboard inductive charging systems, automotive HVAC systems, and motor drives.

Features

AEC-Q200 qualified up to 105°C
High robustness under high humidity
THB 60°C 93%, 56 days RH at rated U_NDC

High ripple current capability, low ESR, low ESL
Radial mounting

Applications

EV/PHEV (plug-in hybrid electric vehicle) power converters
On-board and inductive charging systems

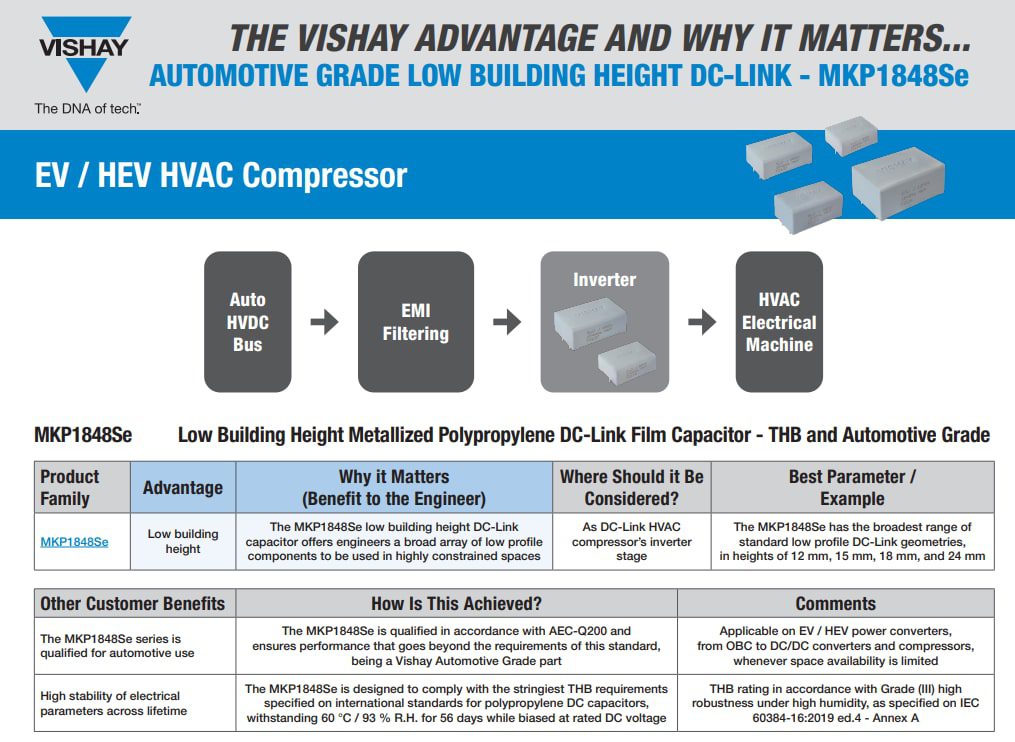

Automobile HVAC systems
Motor drives

Specifications

1μF to 75μF capacitance
5% and 10% tolerances
500V to 1200V rated voltage
Polypropylene film dielectric

Metalized dielectric electrodes
Plastic case sealed with resin, flame retardant
Tinned wire terminals
105°C maximum operating temperature

Vishay / Roederstein MKP1848Se DC-Link Film Capacitors

Features

Applications

Specifications

Videos

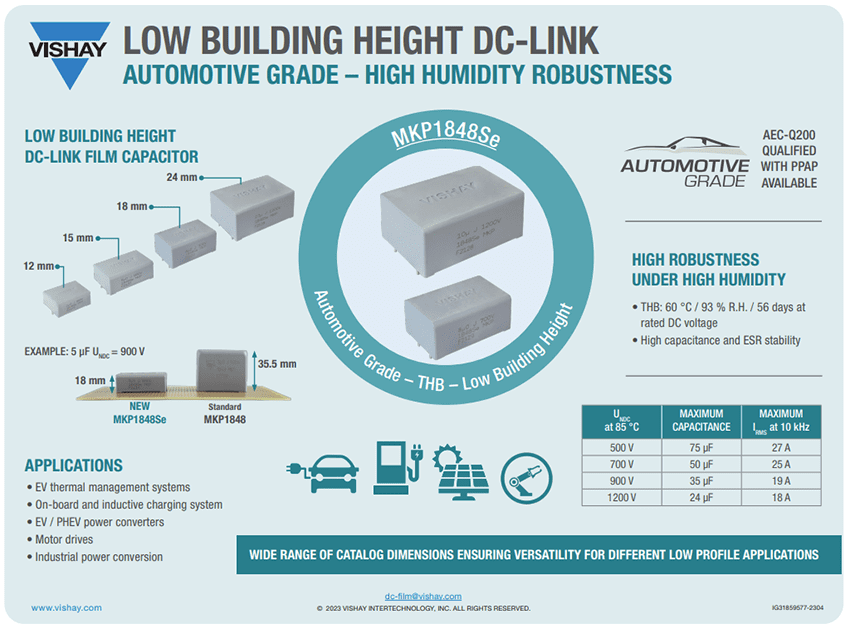

Infographics
