Vishay R3T2FPHM3 Automotive Hybrid Rectifier & TVS

Vishay R3T2FPHM3 Automotive Hybrid Rectifier and TVS is a cutting-edge solution for automotive applications. The Vishay R3T2FPHM3 device combines a rectifier and TRANSZORB® TVS in a single, compact package. The oxide planar chip junction ensures high performance and reliability, and it meets MSL level 1, per J-STD-020, with a maximum peak of 260°C. The device is AEC-Q101 qualified, making it suitable for a wide range of automotive applications.

Features

Automotive hybrid solution for Rectifier and TRANSZORB TVS
Oxide planar chip junction
Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
AEC-Q101 qualified available
Material categorization, definitions of compliance
FlatPAK 5×6 package
Common cathode circuit configuration
-55º to +175ºC operating junction temperature range

Standard rectifier
- I_F(AV) 3A
- V_RRM 600V
- I_FSM 40A
- V_F at I_F = 3A (T_J = 125°C) 0.86V
Transient voltage suppressors
- V_BR 27V
- V_WM 23.1V
- P_PPM 200W

Applications

Secondary protection for sensor units
Distributed airbag modules
Low-power DC/DC converters under power distributor

Vishay R3T2FPHM3 Automotive Hybrid Rectifier & TVS

Features

Applications

Videos

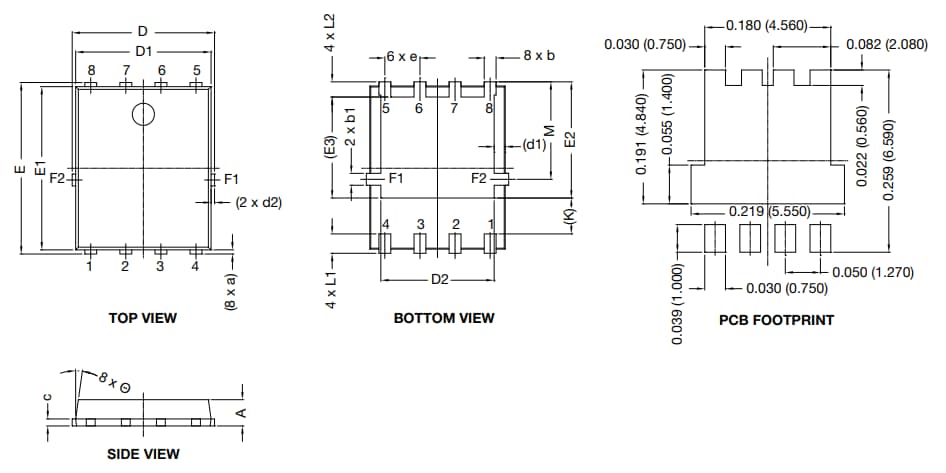

Package Dimensions
