Vishay Optically Isolated MOSFET Drivers

Vishay Optically Isolated MOSFET Drivers provide the voltage required to drive the gate of a low-voltage MOSFET. The gate voltage is generated by photovoltaic cells, and no power supply is needed on the output side. This simplifies designs when using low-voltage MOSFETS. The single channel VOM1271T provides 8.4 V output voltage with an input forward current of just 10mA. The dual channel VO1263AACTR provides 14.5V output voltage.

Features

VOM1271T:
- 3750V_RMS isolation voltage
- 15μA typical short circuit current
- 8.4V typical open circuit voltage with I_F=10mA
- No V_CC on the output side
- Gate voltage generated solely by photovoltaic cells
- Small, SOP-4 package
- Automotive AEC-Q102 qualified
VOD3120AB-T:
- 2.5A minimum peak output current
- 15V to 30V operating voltage range
- 5300V_RMS isolation voltage
- Turn-on time 35µs and turn-off time 150µs

VO1263AACTR:
- Dual channel
- 14.7V typical open circuit voltage with I_F= 10mA
- 15.2V typical open circuit voltage with I_F= 30mA
- 15µA typical short circuit current with I_F= 10mA
- Isolation voltage 5300V_RMS
- Turn-on time 35µs and turn-off time 150µs

Applications

VOD3120AB-T:
- AC and brushless DC motor drives
- Industrial inverters
- Switch Mode Power Supplies (SMPS)
- Uninterruptible Power Supplies (UPS)

Vishay Optically Isolated MOSFET Drivers

Features

Applications

VOM1271T Application Diagram

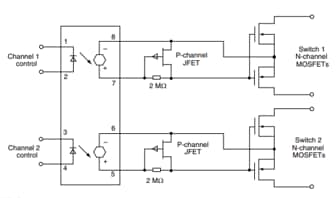

VO1263AACTR Application Diagram

VOD3120AB-T Application Diagram
