Vishay MMA 0204/MMB 0207 HV AT MELF Resistors

Vishay MMA 0204 and MMB 0207 HV AT MELF Resistors are ideal for fields of modern electronics where stability and reliability are a concern. These resistors are AEC-Q200 qualified and offer advanced metal film technology. The MELF resistors are RoHS-compliant and halogen-free and have a PCB mounting style. These resistors feature advanced metal film technology and intrinsic sulfur resistance. The MELF resistors operate at -55°C to 155°C temperature range and Umax = 1200V high operating voltage. These resistors are ideally used in automotive, lighting, industrial, and medical equipment.

Features

  • AEC-Q200 qualified
  • Advanced metal film technology
  • Intrinsic sulfur resistance
  • RoHS compliant
  • PCB mounting style
  • Halogen-free

Specifications

  • 700V voltage rating
  • 400mW power rating
  • 25PPM/K temperature coefficient
  • <1ppm/V voltage coefficient
  • 1MΩ resistance
  • Umax = 1200V high operating voltage
  • 155°C permissible film temperature
  • -55°C to 155°C operating temperature range

Applications

  • Automotive
  • Lighting
  • Industrial
  • Medical equipment

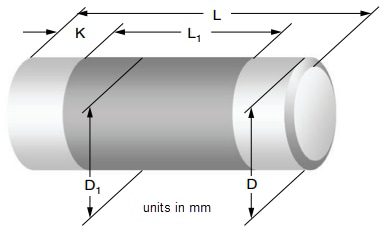

Dimension Diagram

Mechanical Drawing - Vishay MMA 0204/MMB 0207 HV AT MELF Resistors
