Vishay General Semiconductor S8x Surface Mount Glass Passivated Rectifiers

Vishay S8x Surface Mount Glass Passivated Rectifiers feature low forward voltage drops, low leakage currents, and high forward surge capability. The low-profile SMC (DO-214AB) packaged rectifiers are available with 400V, 600V, 800V, or 1000V maximum repetitive peak reverse/DC blocking voltages. Operating within a -55°C to +150°C junction temperature range, the Vishay S8x Surface Mount Glass Passivated Rectifiers are for use in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer/telecommunication applications.

Features

Low profile, SMC (DO-214AB) package
Ideal for automated placement
Glass passivated pellet chip junction
Low forward voltage drop
Low leakage current

High forward surge capability
Meets MSL level 1, per J-STD-020, LF maximum peak of +260°C
Lead-free and RoHS compliant

Applications

Power supplies
Inverters

Converters
Freewheeling diodes

Specifications

400V, 600V, 800V, or 1000V maximum repetitive peak reverse voltage
280V, 420V, 560V, or 700V maximum RMS voltage
400V, 600V, 800V, or 1000V maximum DC blocking voltage
1.6A to 8.0A maximum average forward rectified current range
200A or 220A peak forward surge current, 8.3ms single half sine-wave superimposed on the rated load
450A or 500A peak forward surge current single half sine-wave at 1.0ms

0.78V to 0.97V typical instantaneous forward voltage range
Reverse current
- 10μA maximum at +25°C
- 180μA or 200μA maximum at +125°C
3.4μs or 3.6μs typical reverse recovery time
63pF or 72pF typical junction capacitance
-55°C to +150°C operating junction temperature range
UL 94V-0 molding compound
Matte tin-plated leads

Vishay General Semiconductor S8x Surface Mount Glass Passivated Rectifiers

Features

Applications

Specifications

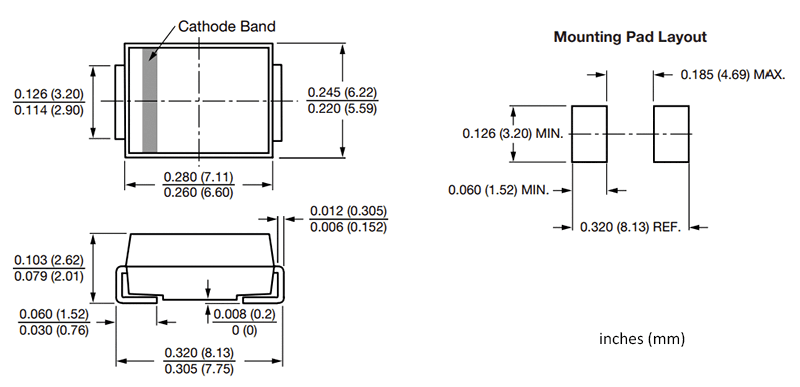

Package Dimensions
