Vishay General Semiconductor 6DFN12A to 6DFN51A TRANSZORB® SMD TVS Diodes

Vishay 6DFN12A to 6DFN51A TRANSZORB® SMD Transient Voltage Suppressor (TVS) Diodes feature a junction passivation optimized design with passivated anisotropic rectifier technology. These low-profile (0.88mm typical) diodes offer excellent clamping voltage capability (16.7V to 70.1V maximum) with 600W peak pulse power in a wide -65°C to +175°C operating junction temperature range. The components are compatible with the SMP (DO-220AA) package case outline. The Vishay 6DFN12A to 6DFN51A TRANSZORB® TVS Diodes protect sensitive electronics against voltage transients induced by inductive load switching and lightning on ICs, MOSFETs, signal lines of consumer sensor units, computers, industrial, medical, and telecommunications.

Features

Low-profile package with a typical 0.88mm height
Ideal for automated placement
Junction passivation optimized design with passivated anisotropic rectifier technology
Unidirectional
Excellent clamping capability
600W peak pulse power (10/1000μs)

Polarity
- Color band denotes the cathode end
- Heatsink is anode
Meets MSL level 1, per J-STD-020, LF maximum peak of +260°C
Compatible with SMP (DO-220AA) package case outline
Lead-free, Halogen-free, and RoHS compliant

Applications

Sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs
MOSFETs
Signal lines of consumer sensor units

Computers
Industrial
Medical
Telecommunication

Specifications

600W peak pulse power dissipation
11.4V to 53.6V breakdown voltage range
1mA test current
10.2V to 43.6V standoff voltage range
8.6A to 35.9A maximum peak pulse surge current range
16.7V to 70.1V maximum clamping voltage range

0.070%/°C to 0.093%/°C typical temperature coefficient range
-65°C to +175°C operating junction temperature range
30kV ESD protection
UL 94V-0 molding compound
Matte tin-plated leads

Vishay General Semiconductor 6DFN12A to 6DFN51A TRANSZORB® SMD TVS Diodes

Features

Applications

Specifications

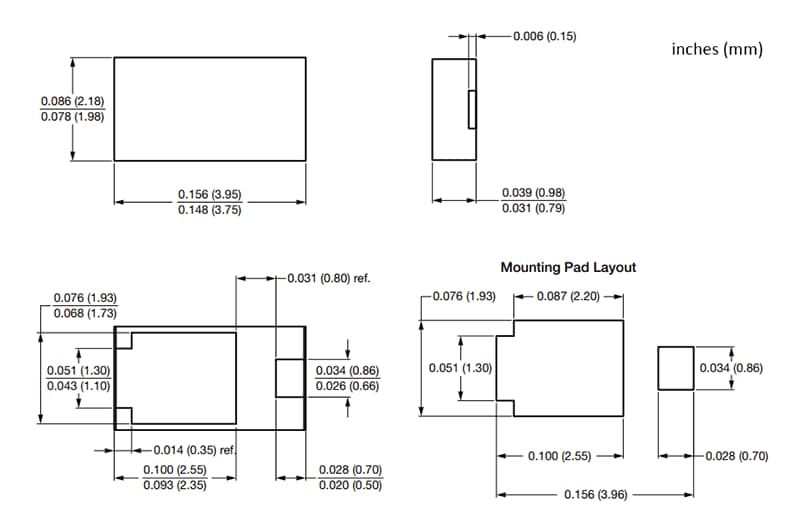

Package Dimensions
