Vishay / Dale WSL2512 Power Metal Strip® Resistors

Vishay / Dale WSL2512 Power Metal Strip® Resistors are available in a 2512 package size with 6.35mm x 3.18mm x 0.635mm dimensions (L x W x H). These current sense resistors feature an all-welded construction and a proprietary processing technique for low resistance values of 400µΩ to 500mΩ. The resistor construction is sulfur resistant and unaffected by high-sulfur environments. The WSL2512 lineup includes high-temperature and high-power variants. Vishay / Dale WSL2512 Power Metal Strip Resistors are ideal for all types of current sensing, pulse, and voltage division applications.

Features

All welded construction
Proprietary processing technique produces extremely low resistance values
High temperature and high power options

Sulfur resistant, unaffected by high sulfur environments
Low thermal EMF
AEC-Q200 qualified

Applications

Current sensing
Voltage division
Pulse

Specifications

2512 package size
6.35mm x 3.18mm x 0.635mm dimensions (L x W x H)
1W or 2W power rating
400µΩ to 500mΩ resistance range
0.1% to 5% tolerance

0.5nH to 5nH inductance range
<3μV/°C thermal EMF
20ppm/°C to 275ppm/°C temperature coefficient
-65°C to +170°C or +275°C temperature range

Vishay / Dale WSL2512 Power Metal Strip® Resistors

Features

Applications

Specifications

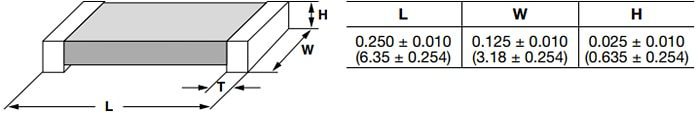

Dimensions (mm)
