Vishay / Dale UGDT Micro Gate Drive Transformers

Vishay / Dale UGDT Micro Gate Drive Transformers deliver MOSFET / IGBT gate power and timing signals simultaneously. The transformers offer direct drive high side MOSFET / IGBT on buses up to 200V. The series features excellent rise time, overshoot, and peak current characteristics. Vishay / Dale UGDT Micro Gate Drive Transformers have a frequency range of 125kHz to 750kHz.

Features

  • Delivers MOSFET / IGBT gate power and timing signals simultaneously
  • Directly drives high side MOSFETs / IGBTs on buses up to 200V
  • Excellent rise time, overshoot, and peak current characteristics
  • 125kHz to 750kHz frequency range
  • -55°C to +130°C operating temperature range

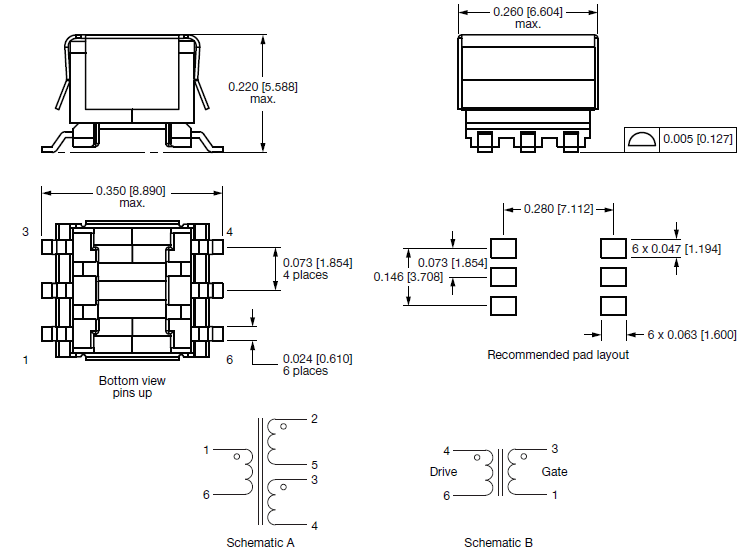

Dimensions In. (mm)

Vishay / Dale UGDT Micro Gate Drive Transformers
