Vishay / Dale TNPW Lead-Bearing Thin Film Chip Resistors

Vishay TNPW Lead-Bearing Thin Film Chip Resistors are high-stability, thin-film chip resistors. The lead-bearing terminations make these thin-film resistors suitable for critical applications where reliability and stability are a major priority, such as military, avionics, and industrial applications. These resistors feature package sizes ranging from 0402 to 1210, resistance ranges from 10Ω to 3.01MΩ, and tolerances from ±1% to ±0.1%. Vishay TNPW Lead-Bearing Thin Film Chip Resistors feature a ceramic construction, a metal film layer, and SnPb termination plating, with a lead contact >6%.

Features

Metal film and ceramic construction
SnPb termination plating, Pb content >6%
High stability at various environmental conditions ≤ 0.05%

Low-temperature coefficient
Tight tolerences
Single lot date code available

Applications

Military
Avionics
Industrial

Specifications

0402 to 1210 packages
10Ω to 3.01MΩ
±1%, ±0.5%, and ± 0.1% tolerances

± 50 ppm/K, ± 25 ppm/K, ± 15 ppm/K, ± 10 ppm/K temperature coefficient
0.063W, 0.1W, 0.125W, 0.25W, and 0.33W rated dissipations
50V, 75V, 150V, and 200V operating voltages

Vishay / Dale TNPW Lead-Bearing Thin Film Chip Resistors

Features

Applications

Specifications

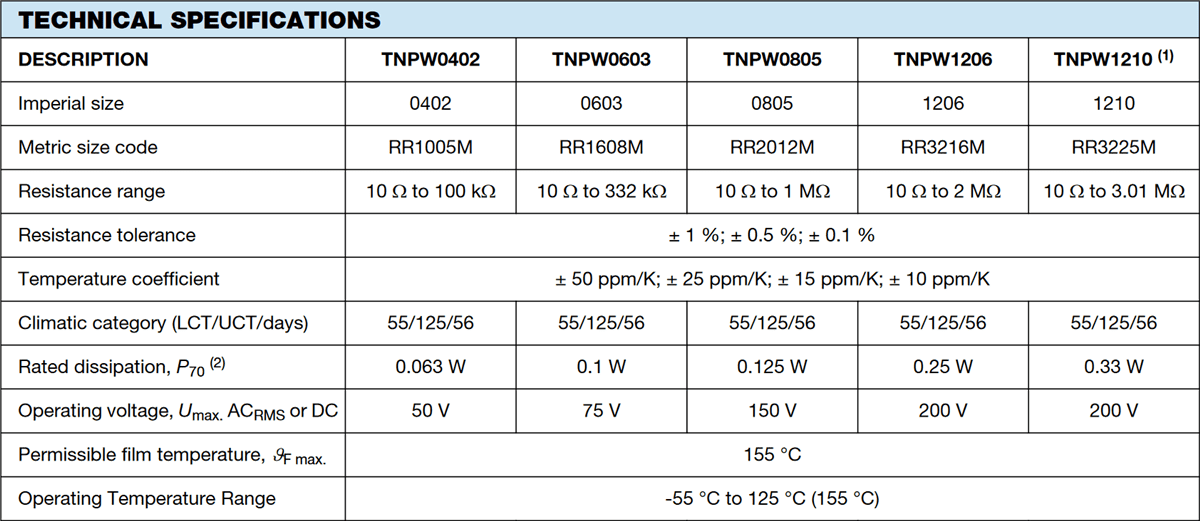

Technical Specifications
