Vishay / Dale SGIHLP® Space-Grade IHLP® Inductors

Vishay / Dale SGIHLP® Space-Grade IHLP® Inductors feature high operating temperatures up to +180°C in a rugged package. Vishay SGIHLP Space-Grade Inductors meet the requirements of MIL-STD-981 and come in seven case sizes with footprints ranging from 6.2mm² to 24.5mm². SGIHLP is designed for use in low-profile, high-current power supplies, high-current point-of-load converters, power converters for solar panels, and more.

Features

Meets the requirements of MIL-STD-981
High operating temperatures of up to +180°C

Rugged package
Offered in seven case sizes (6.2mm² to 24.5mm² footprints)

Applications

Low-profile, high-current power supplies
High-current POL converters
DC-DC converters in distributed power systems

Power converters for solar panels
Noise suppression

Specifications

10.8A to 69.0A current rating for 1ΩH
6.2mm² to 24.5mm² footprints
4.3mm to 15mm profile height
100nH to 100µH inductance range
2.4A to 80A maximum DC current range
2.01MHz to 248MHz self-resonant frequency range

680µΩ to 252mΩ maximum DC resistance range
1.6A to 100A saturation current range
Screening codes
- 1S MIL-STD-981 Group A/B fullscreen
- 1P basic production screen – product is not MIL-STD-981 compliant

Vishay / Dale SGIHLP® Space-Grade IHLP® Inductors

Features

Applications

Specifications

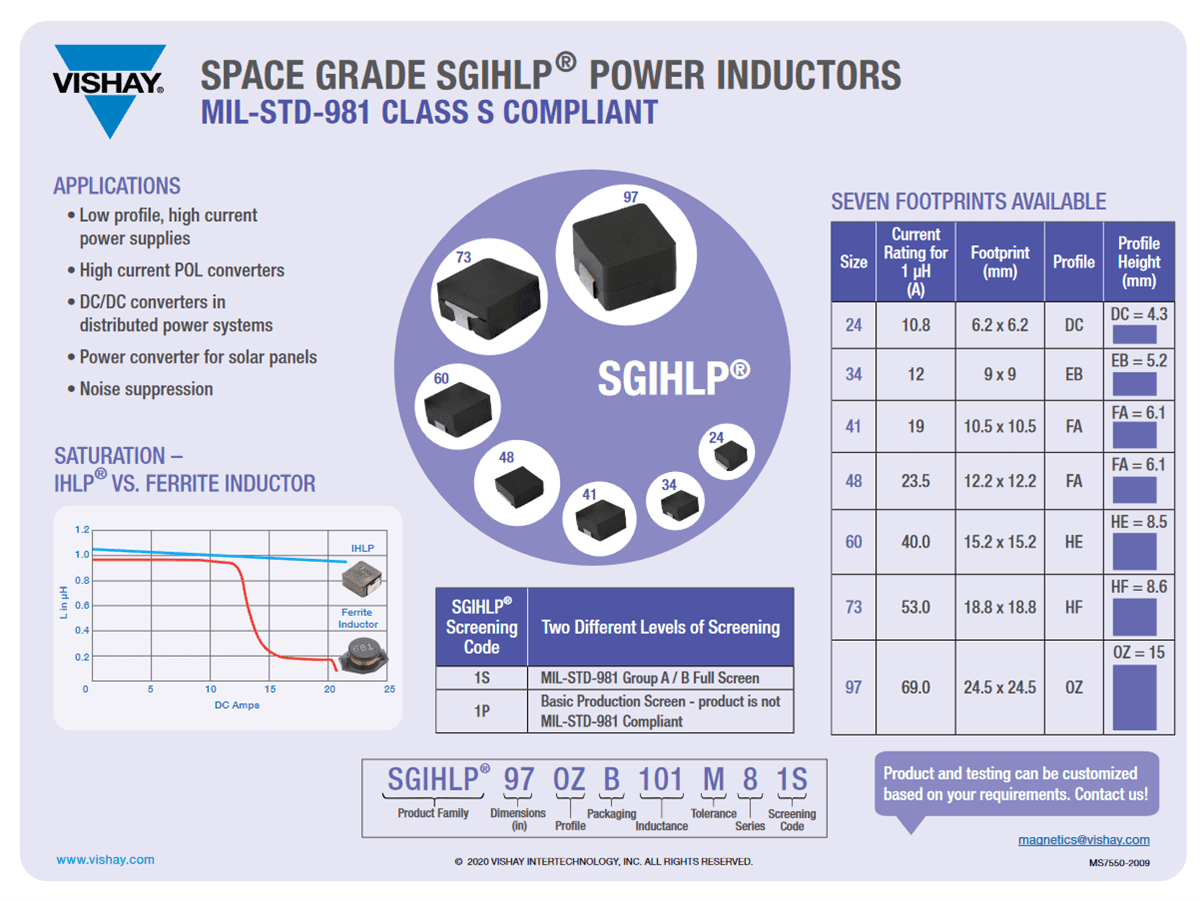

Infographic
