Vishay / Dale IHLE-5050FH-5A High Current Inductors

Vishay / Dale IHLE-5050FH-5A High-Current Inductors with E-Field Shield are high-temperature inductors up to +155°C and include an integrated E-Shield for maximum electromagnetic interference (EMI) reduction. The E-Field Shield also eliminates the need for separate shielding. Vishay / Dale IHLE-5050FH-5A High-Current Inductors are AEC-Q200 qualified and provide excellent DC/DC energy storage up to 1MHz to 2MHz. The series is ideal for use in engine and transmission control units, diesel injection drivers, and more.

Features

High temperature, up to +155°C
Integrated E-Shield for maximum EMI reduction
Excellent DC/DC energy storage up to 1MHz to 2MHz
- Filter inductor applications up the self-resonant frequency (SRF)
Integrated E-Field Shield eliminates the need for separate shielding

20dB E-Field reduction at 10mm measured vertically from the top-center of the device
AEC-Q200 qualified
Lowest DCR/μH in this package size
Handles high transient-current spikes without saturation
Coplanarity of the four terminals ≤100μm

Applications

Noise suppression for motors
- Windshield wipers
- Power seats
- Power mirrors
- Heating and ventilation blowers
- High-intensity discharge (HID) lamp lighting

Engine and transmission control units
Diesel injection drivers
DC/DC converters for entertainment / navigation systems
LED drivers

Vishay / Dale IHLE-5050FH-5A High Current Inductors

Features

Applications

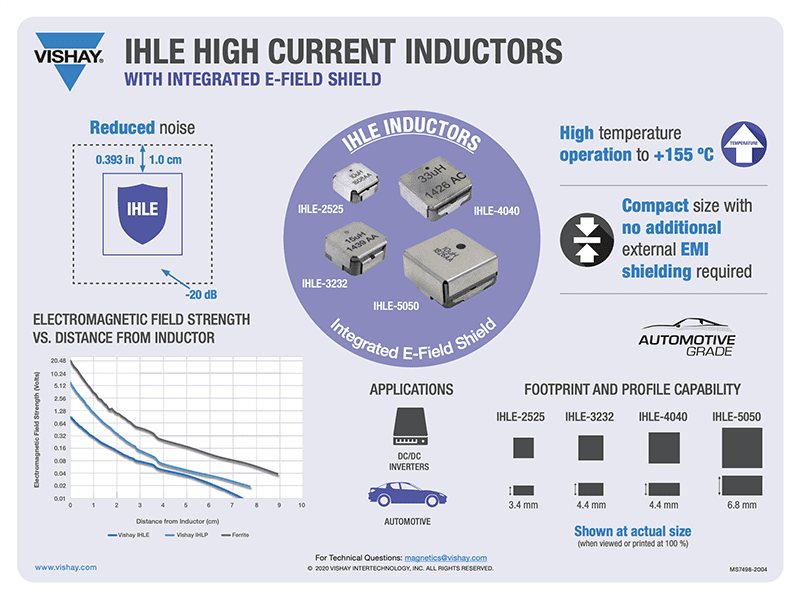

Infographic

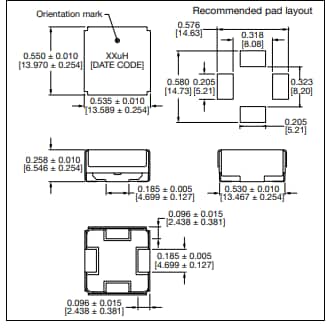

Dimensions In. (mm)
