Vishay / Dale IHDM-1107BB-x0 High-Current Through-Hole Inductors

Vishay / Dale IHDM-1107BB-x0 High-Current Through-Hole Inductors are automotive-grade, edge-wound inductors with continuous operation up to +180°C and no aging. These inductors offer low DC resistance (DCR), minimizing losses and reducing temperature rise. The Vishay / Dale IHDM-1107BB-x0 inductors series features powdered iron alloy core technology that provides stable inductance and saturation over the operating temperature range with satisfactory core losses. Soft saturation provides a predictable inductance decrease with increasing DC current independent of temperature.

Features

Up to +180°C continuous operation with no aging
Low DCR to minimize losses and reduce temperature rise
Powdered iron alloy core technology provides stable inductance and saturation over the operating temperature range with satisfactory core losses
Soft saturation gives predictable inductance decrease with increasing DC current independent of temperature

Includes multiple powdered iron core materials for optimized performance in circuit applications
Standard terminal is stripped and tinned for through-hole mounting
Hot-dipped Sn (tin) plating provides a low risk of whisker growth

Applications

High current and high temperature
DC/DC converters

High-current differential mode chokes
Inverters

Specifications

0.47µH to 12µH inductance range
0.25mΩ to 2.17mΩ typical DCR at +25°C

0.30mΩ to 2.60mΩ maximum DCR at +25°C
61A to 422A saturation current

Vishay / Dale IHDM-1107BB-x0 High-Current Through-Hole Inductors

Features

Applications

Specifications

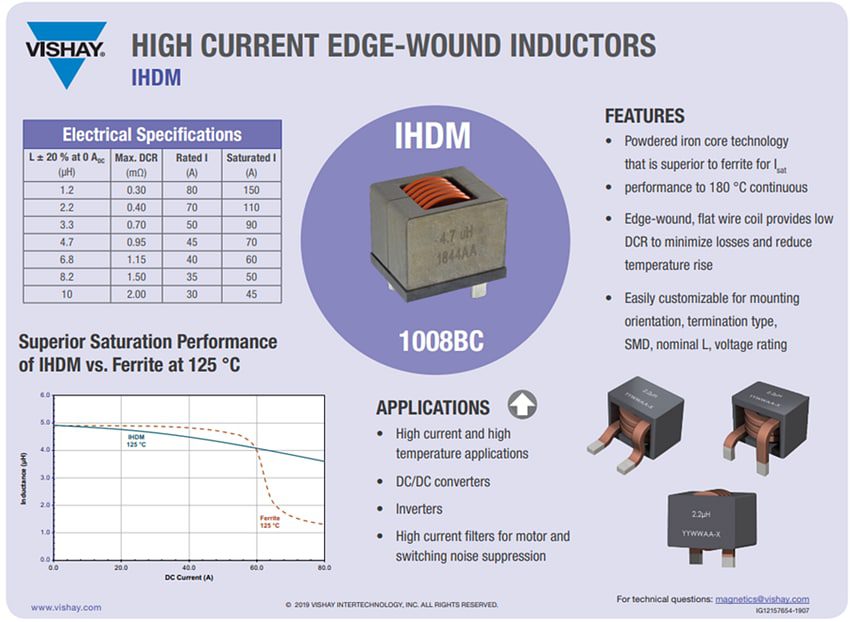

Infographic
