Vishay / Dale IHDM-1008BC Edge-Wound Through-Hole Inductors

Vishay / Dale IHDM-1008BC Edge-Wound Through-Hole Inductors provide a maximum 80A heat rating current, 1.2µH to 10µH inductance range, and 8MHz to 90MHz range. The IHMD-1008BC-3A series offers automotive-grade inductors that feature stable inductance and saturation with low power losses and excellent heat dissipation. The IHMD-1008BC-30 series includes powdered iron alloy core technology and is ideal for industrial and military applications.

Vishay / Dale IHDM-1008BC Edge-Wound Through-Hole Inductors operate in the -40°C to +180°C temperature range.

Features

Powdered iron alloy core technology provides stable inductance and saturation over operating temperature with satisfactory core losses
High-temperature continuous operation, up to 180°C with no aging

Soft saturation gives predictable inductance decrease with increasing DC current independent of temperature
Low DCR to minimize losses and reduce temperature rise

Applications

High current and high temperature
DC-DC converters
High current motor and switching noise suppression

Inverters
Onboard chargers

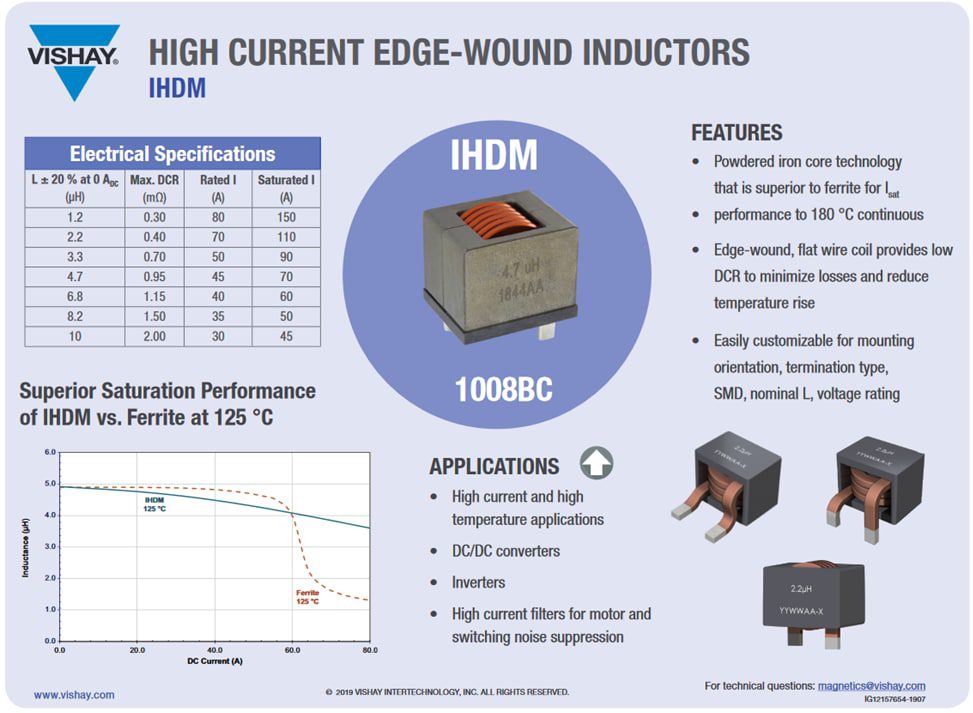

Infographic

Vishay / Dale IHDM-1008BC Edge-Wound Through-Hole Inductors

Datasheets

IHDM-1008BC-x0
IHDM-1008BC-3A
IHDM-1008BC-30
