Vishay / Dale CRCW-P Thick Film Chip Resistors

Vishay CRCW-P Resistors are thick film, rectangular, semi-precision chip resistors. These resistors feature low-temperature coefficients (50 ppm/K) and tight tolerances (± 0.25 %). The CRCW-P resistors operate at >10⁹ insulation resistance, -55°C to 155°C temperature range, and they metal glaze on high-quality ceramic.

Features

D/CRCW-P e3:
- Pure tin plating provides compatibility with lead (Pb)-free and lead-containing soldering processing
- AEC-Q200 qualified
D/CRCW-P:
- Lead (Pb)-bearing termination plating on Ni barrier layer

Low-temperature coefficient (50ppm/K)
Tight tolerances (±0.25%)
Metal glaze on high-quality ceramic

Specifications

D/CRCW-P e3
- <0.1 x 10^-9 of failure rate
D/CRCW-P
- 0.3 x 10^-9 of failure rate

-55°C to 155°C temperature range
>10⁹ of insulation resistance

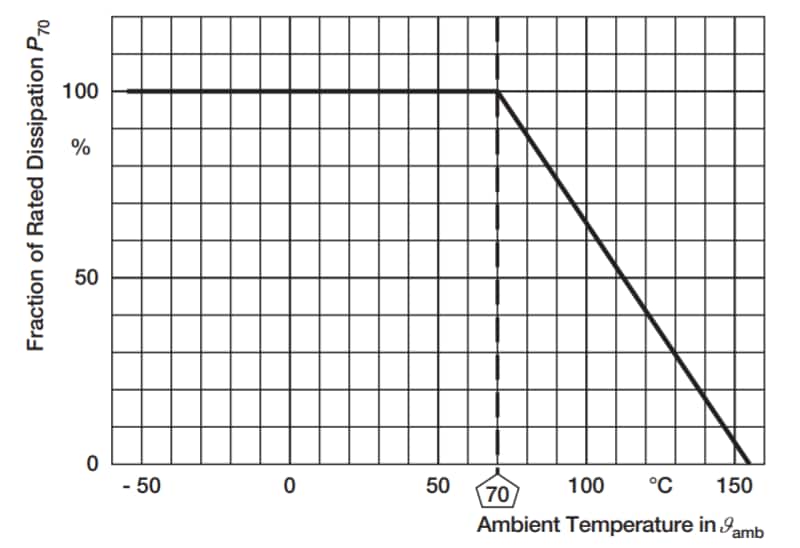

Functional Performance

Performance Graph - Vishay / Dale CRCW-P Thick Film Chip Resistors
