Vishay CDMV Thick Film Chip Dividers

Vishay CDMV Thick Film Chip Dividers offer up to 1415V medium voltage in a three-sided wraparound termination style. These modules feature a 700:1 maximum resistance ratio and -55°C to +155°C operating temperature range. The CDMV series is available in tape-and-reel packaging and with solder-coated nickel barrier terminations. Vishay CDMV Thick Film Chip Dividers are RoHS compliant, lead free, and halogen free.

Features

Up to 1415V voltage
700:1 maximum resistance ratio
Flow solderable
3-sided wrap-around termination style
Solder-coated nickel barrier terminations material

-55°C to +155°C operating temperature range
96% alumina substrate
Tape-and-reel packaging available
Halogen free
RoHS compliant and lead free

Vishay CDMV Thick Film Chip Dividers

Features

Derating Curve

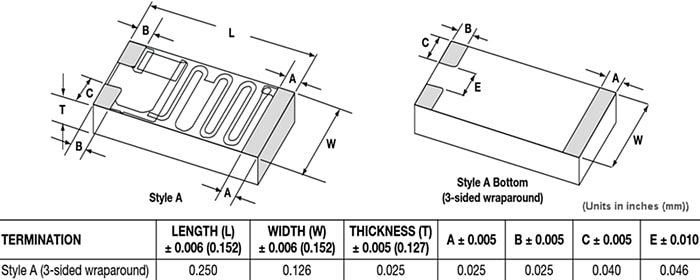

Dimensions

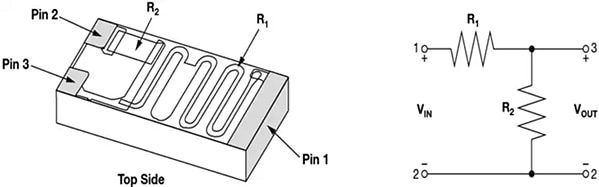

Schematic
