Vishay / BC Components 125ALS Axial Aluminum Electrolytic Capacitors

Vishay / BC Components 125ALS Axial Aluminum Electrolytic Capacitors are axial-leaded, miniaturized capacitors with 5000 hours to 10,000 hours useful life at +105°C. Vishay / BC Components 125ALS Axial Aluminum Electrolytic Capacitors offer high CV-product per unit volume and are charge- and discharge-proof. The series features 47μF to 18,000μF rated capacitance range and a 10V to 63V rated voltage range.

Features

Polarized aluminum electrolytic capacitors, non-solid electrolyte
Axial leads, cylindrical aluminum case, insulated with a blue sleeve
Mounting ring version not available in insulated form
Taped versions up to case diameter 15mm x 30mm available for automatic insertion

Charge and discharge proof
5000 hours to 10,000 hours useful life at +105°C, high reliability
High ripple current capability
Miniaturized, high CV-product per unit volume

Applications

Industrial, automotive, electronic data processing (EDP), and telecommunication
Smoothing, filtering, buffering in switched-mode power supplies (SMPS), coupling, decoupling, and timing
Portable and mobile equipment (small size, low mass)

Stand-by applications
Low mounting height boards, vibration- and shock-resistant

Specifications

47μF to 18,000μF rated capacitance range (C_R)
±20% tolerance on C_R

10V to 63V rated voltage range
-40°C to +105°C category temperature range

Vishay / BC Components 125ALS Axial Aluminum Electrolytic Capacitors

Features

Applications

Specifications

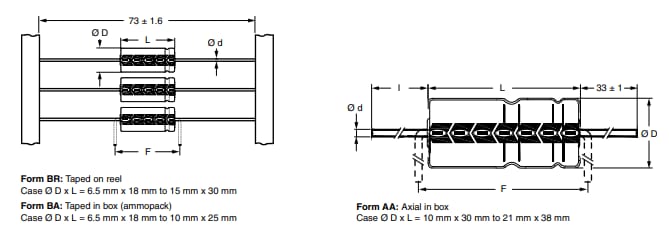

Dimensions & Available Forms
