Ultraleap SP4-00005-03 Leap Motion Controller 2

Ultraleap SP4-00005-03 Leap Motion Controller 2 is a second-generation iconic hand-tracking module that captures the movement of hands and fingers in digital worlds. This controller is compatible with Windows, macOS, Android XR2, and complimentary hardware, including XR headsets, PCs, and holographic displays. The controller features hand-tracking software where the camera accurately detects, identifies, and tracks 27 distinct hand elements, including bones and joints. This controller also features a 160° x 160° minimum field of view, 120fps maximum camera framerate, and 0°C to 40°C operating temperature range. The Leap Motion Controller 2 is the ideal hardware to experience world-class hand tracking, bringing 3D interactions to PC applications and empowering to ditch the controllers in virtual reality.

Ultraleap SP4-00005-03 Leap Motion Controller 2

Training In VR Has Never Been More Effective

The Leap Motion Controller 2 helps learn and practice critical skills in a safe, immersive, and realistic environment. The controller also helps to master complex tasks quickly and confidently, increasing productivity and improving safety.

Immerse Yourself In A New Reality

The Leap Motion Controller 2 interacts with virtual surroundings naturally and intuitively. Use hands instead of controllers to navigate through virtual environments, immersed in the experience.

World’s Best Hand Tracking On Your Favourite XR Headset

The Leap Motion Controller 2 can be attached to headsets from Pico, HTC, and Varjo allows to choose the perfect device.

Ultraleap SP4-00005-03 Leap Motion Controller 2

Interact With Digital Content In 3D

Do not limit your hands to flat surfaces and buttons. The Leap Motion Controller 2 intuitive hand gestures allow to navigate and control digital content, providing a more natural, comfortable, and user-friendly way to interact with computers.

Express Yourself Naturally With Your Hands

Bring creative visions to life with a more immersive and interactive experience. The Leap Motion Controller 2 can add an extra layer of realism to a digital avatar that creates a more authentic and engaging experience.

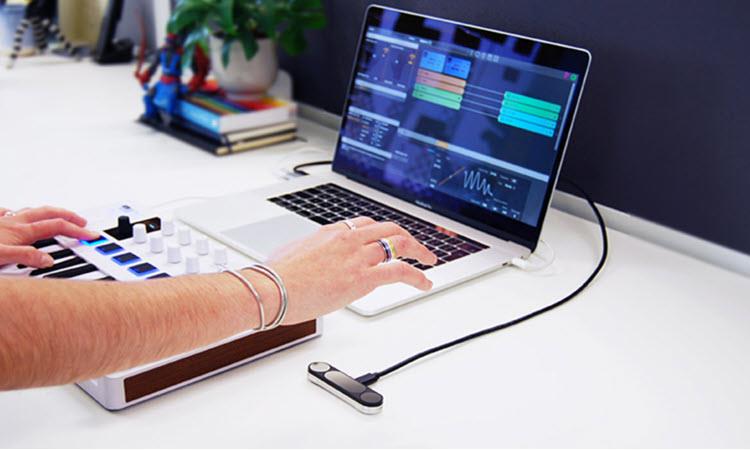

Experience A New Level Of Creativity

Unleash artistic potential with 3D MIDI control, 3D audio mixing, and intuitive gesture-based interactions. Bring creative visions to life, like musicians, audio engineers, or visual artists.

Gemini: Ultraleap Hand Tracking Tracking Software

Ultraleap SP4-00005-03 Leap Motion Controller 2

Features

  • Universal XR headset mount allows for easy attachment to many different XR headset designs
  • Plugins for unity and unreal enable developers working with two leading 3D development platforms
  • LeapC API allows integration with applications outside of unity and unreal
  • Second generation of Ultraleap’s iconic hand-tracking camera
  • Greater field of view, lower power, all in a smaller package
  • Compatible with PC VR Headsets, desktop applications, and holographic displays
  • Compatible with Windows, macOS, and Android XR2
  • Attachable to the XR headsets:
    • Pico Neo 3 Pro and Pro Eye and other headsets are compatible, including:
      • Pico 4
      • Pico Neo 3 Link
      • HTC Vive Focus
  • XR Headset mount for multiple headsets (available to purchase separately)

Specifications

  • 5VDC via USB and 500mA power supply
  • USB 3.0 via USB Type-C™ connector
  • Depth between 10cm (4-inch) to 110cm (43-inch) tracking range
  • 160° x 160° minimum field of view
  • 120fps maximum camera framerate
  • -30°C to 60°C (-22°F to 140°) storage temperature range
  • CE, FCC, UKCA, CCC, KC, PSE, RCM A-NZ, RoHS, and REACH compliance
  • 850nm operating wavelength
  • 0°C to 40°C (32°F to 104°F) operating temperature range
  • Aluminium and scratch-resistant glass
  • 84mm x 20mm x 12mm dimensions

Applications

  • Enterprise XR:
    • Training and simulation
    • Industry field services
    • Education
    • Productivity
    • Collaboration
  • Gaming and interactive entertainment, both at home and in location-based experiences for arcades and amusement parks
  • Interaction with objects and menus for 3D displays, holograms, or projections
  • Robotics, including telepresence, robotic controls, and AI-assisted teaching
  • Music:
    • 3D MIDI control
    • 3D audio mixing
  • Healthcare:
    • Stroke rehabilitation
    • Therapy and training
    • Medical imaging
    • Lazy eye treatment

Kit Contents

  • Leap Motion Controller 2
  • 1.5m USB 3.0 and type C to type C cable

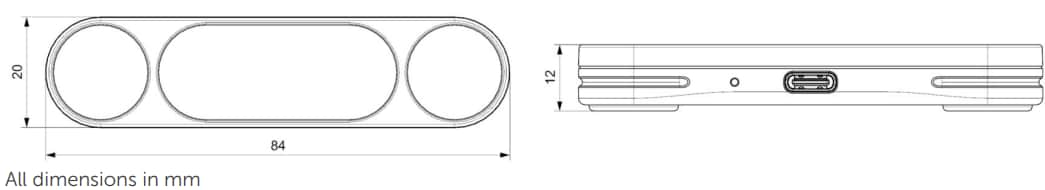

Dimension Diagram

Mechanical Drawing - Ultraleap SP4-00005-03 Leap Motion Controller 2
