u-blox SARA-R510AWS LTE-M AWS IoT ExpressLink Module

u-blox SARA-R510AWS LTE-M AWS IoT ExpressLink Module is a turnkey solution designed to directly access Amazon Web Services (AWS) IoT Services securely over LTE-M. The SARA-R510AWS Module is based on the u-blox UBX-R5 cellular chipset, optimized for the fast and easy development of secure IoT devices. By bridging the u-blox in-house chipset platform with the market-leading cloud computing services of AWS, this solution provides long-term availability and lifetime support from silicon to cloud. The embedded AWS IoT ExpressLink-certified software provides a tailored AT command set that paves the way to AWS cloud access straight out of the box, accelerating time-to-market.

The u-blox SARA-R510AWS LTE-M AWS IoT ExpressLink Module provides AWS cloud service access without needing the customer to integrate any additional API on the MCU. Every single step is handled inside the IoT Module.

The module is optimized for low power consumption, using <1μA in PSM mode, and is ideal for battery-powered applications. Combined with an internal, hardware-based secure element, a lightweight set of AT commands, and seamless access to the AWS cloud, the solution protects business-critical data from device to cloud without heavily investing in resources for provisioning, authentication, certification, and security.

Features

  • Direct AWS IoT cloud access secured with the hardware-based root of trust
  • Optimized, easy-to-use AT command set for accelerated time-to-market
  • Unburden the host processor from connectivity and cryptography tasks
  • Host OTA to update host microcontroller firmware directly from AWS Jobs service
  • Access to AWS IoT Device and Fleet management and 200+ optional AWS services

Applications

  • Control
    • AWS IoT Core
    • AWS IoT Jobs
    • AWS IoT Device Management
    • IoT Device Defender
    • AWS IoT FleetWise
  • Analytics
    • AWS IoT Analytics
    • AWS IoT Events
    • AWS IoT SiteWise
    • AWS IoT TwinMaker

Specifications

  • 3V to 4.5V supply voltage
  • Cellular
    • LTE bands
      • 1, 12, 13, 18, 19, 2, 20, 25, 26, 28, 3, 4, 5, 66, 71, 8, 85
    • LTE power class
      • 23dBm
  • Interfaces
    • 2x UART
    • 1x USB
    • 1x DDC (I2C compliant)
    • 6x GPIO
    • 1x UCIM
  • Additional features
    • Antenna and SIM detection
    • Embedded MQTT
    • FW update via serial interface
    • Root of Trust: Secure element
    • Secure boot, updates, and production
    • uFOTA
    • Ultra-low PSM (deep sleep)
  • -40°C to +85°C operating temperature range
  • 16.0mm x 26.0mm x 2.2mm

Videos

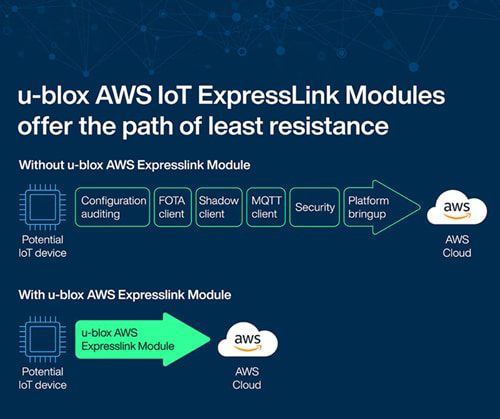

Infographic - u-blox SARA-R510AWS LTE-M AWS IoT ExpressLink Module

View Full Infographic

u-blox SARA-R510AWS LTE-M AWS IoT ExpressLink Module
