u-blox SARA-R5 Series LTE-M/NB-IoT Modules

u-blox SARA-R5 Series LTE-M/NB-IoT Modules are secure cloud LTE Cat M1 and LTE Cat NB2 solutions based on UBX-R5 cellular chipset. These modules deliver high-performance satellite positioning with data connectivity in the very small and compact SARA form factor. The SARA LGA form factor (26mm x 16mm and 96-pin) allows easy integration into compact designs and seamless drop-in migration from other cellular module families. These LTE-M modules provide software-based multi-band configurability that enables international multi-regional coverage in LTE Cat M1/NB2 radio access technologies. The modules offer up to 1200kbit/s data communications over an extended operating temperature range of -40°C to +85°C and with low power consumption.

Features

Secure cloud LTE Cat M1, LTE Cat NB2 solutions based on UBX-R5 cellular chipset
Deliver high-performance satellite positioning with data connectivity in the very small and compact SARA form factor
SARA LGA form factor (26mm x 16mm and 96-pin) allows easy integration into compact designs
Seamless drop-in migration from other cellular module families
Offers software-based multi-band configurability
- Enables international multi-regional coverage in LTE Cat M1/NB2 radio access technologies

Offers 1200kbit/s data communications over -40°C to +85°C operating temperature range
Low power consumption, coverage enhancement for deeper range into buildings and basements
Built-in end-to-end security with the hardware-based root of trust inside the discrete secure element
Full security suite with foundation, design, end-to-end security, and access control
Accurate and reliable positioning with M8 GNSS receiver
Critical firmware updates delivered and services enabled via uFOTA

Applications

Industrial automation
Sensor applications
Connected health

Metering
Asset and vehicle tracking
Telematics.

u-blox SARA-R5 Series LTE-M/NB-IoT Modules

Features

Applications

Videos

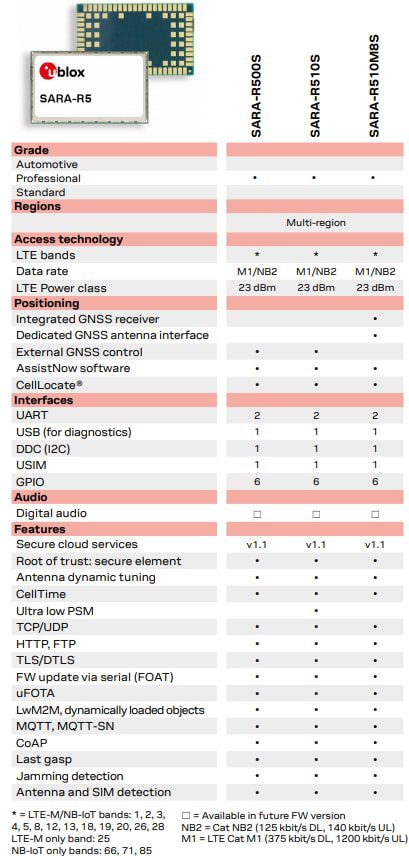

Modules Comparison
