u-blox SARA-R5 EVK-R5 Cellular Evaluation Kits

U-blox SARA-R5 series Cellular Evaluation Kits evaluate SARA-R5 modules with multiband LTE-M/NB-IoT cellular radio access and GNSS technology. These kits are easy to use and offer simple access to pins and features of SARA‑R5 series modules.

The u-blox SARA-R5 EVK-R5 Cellular Evaluation Kits are available in several variants, with the only difference being the specific module version installed on it, with possible related parts.

EVK-R500S Evaluation Kit is for the evaluation of the SARA-R500S module
EVK- R510S Evaluation Kit is for the SARA-R510S module
EVK-R510M8S Evaluation Kit is for the SARA-R510M8S module
EVK-SARA-R510AWS-01 Evaluation Kit is for the SARA-R510AWS-01B module
EVK-SARA-R500E01 Evaluation Kit is for the evaluation of the SARA-R500E module
ADP-SARA-R500E01 Adapter board for SARA-R500E-01B, connectivity for North America

Features

u‑blox LTE Cat M1/NB2 cellular technology
Easy to use
Simple access to pins and features of SARA‑R5 series modules

Extensive visualization and evaluation features
3 USB interfaces
- 2 cellular (1 native USB, 1 USB/UART)
- 1 GNSS

Kit Contents

Evaluation board with a SARA-R5 series LTE-M/NB-IoT module with secure cloud and a GNSS module
USB cable

1 cellular LTE antenna
GPS/GLONASS antenna
Power adapter

u-blox SARA-R5 EVK-R5 Cellular Evaluation Kits

Features

Kit Contents

Videos

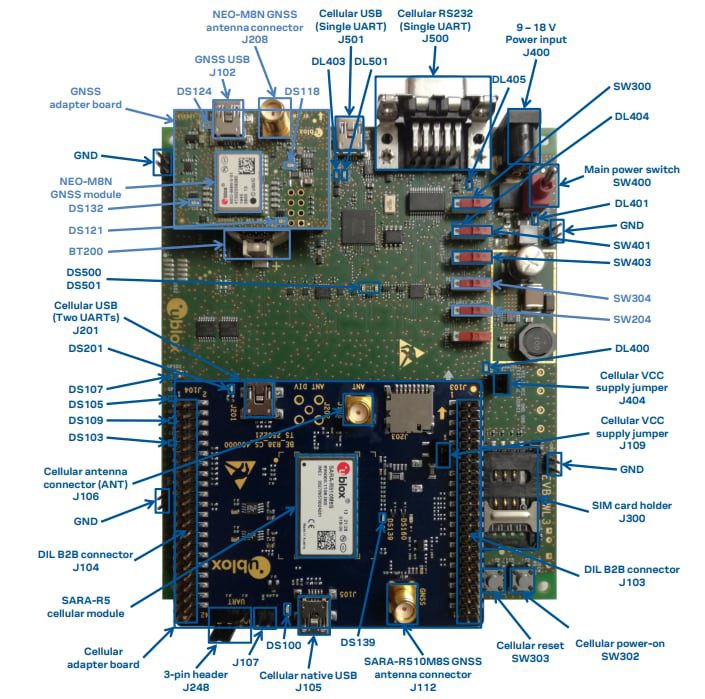

Board Layout

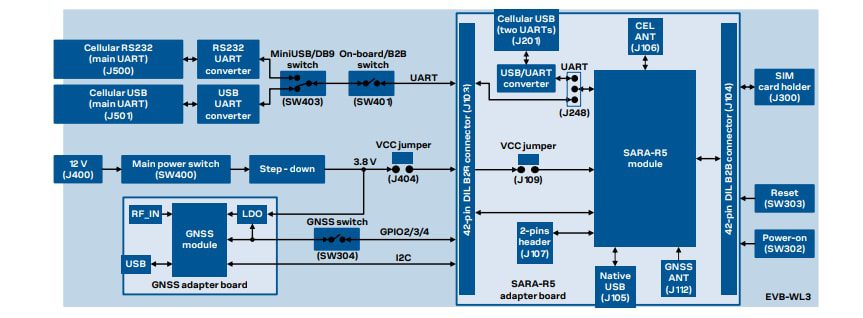

Functional Block Diagram
