u-blox RCB-F9T Timing Boards

u-blox RCB-F9T Timing Boards are designed to provide industry-standard connector access to the ZED-F9T timing module. These boards feature an SMB antenna connector and 5V power supply circuitry for an external active multi-band GNSS antenna. The RCB-F9T boards provide an 8-pin 2mm pitch pin-header that offers powering of the board, UART communications, and two independently configurable time pulse signals. These boards operate from a 2.7V to 3.6V supply voltage range, -40°C to 85°C operating temperature range, and a 100mA power supply current (I_CC) at 3.3V.

Features

Multi-band GNSS receiver type
Supports GPS, Galileo, GLONASS, and BeiDou constellations
Differential timing mode
Supports Quasi-Zenith Satellite System (QZSS)
Supports Satellite Based Augmentation System (SBAS)

Broadcast navigation data and satellite signal measurements
Supported protocols:
- UBX
- NMEA 4.10
- RTCM 3.3

Specifications

8-pin 2mm pitch pin-header
2.7V to 3.6V supply voltage range
-40°C to 85°C operating temperature range
100mA power supply current (I_CC) at 3.3V

0.25Hz to 25MHz configurable time pulse signal frequency range
±4ns time pulse jitter

u-blox RCB-F9T Timing Boards

Features

Specifications

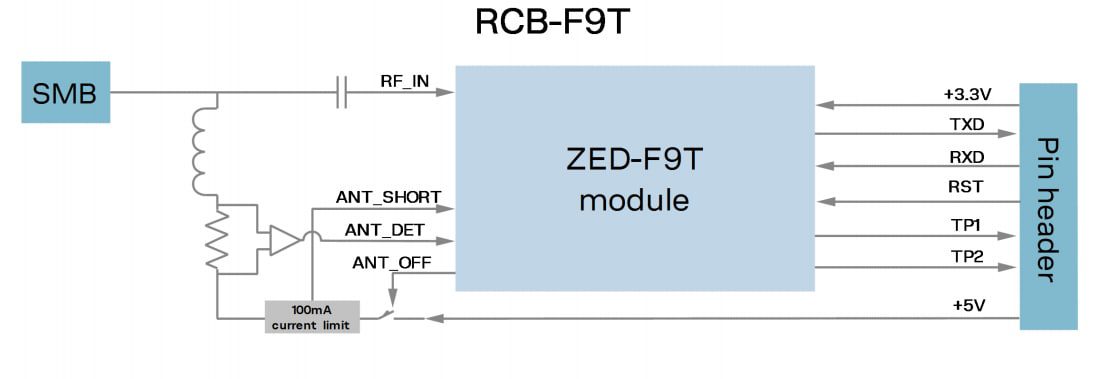

Block Diagram

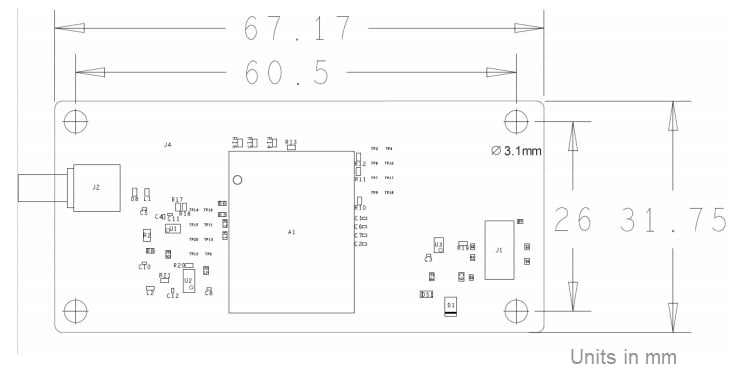

Mechanical Drawing
