u-blox NORA-W36x Multiprotocol Modules

u-blox NORA-W36x Multiprotocol Modules are small, stand-alone, dual-band Wi-Fi^® and BLUETOOTH^® Low-Energy (BLE) modules. These modules support Wi-Fi 4 (802.11a/b/ g/n) in the 2.4GHz and 5GHz ISM bands and Bluetooth low energy 5 in the 2.4GHz ISM band. The NORA-W361 consists of a module pin to connect to an external antenna of choice. The NORA-W366 modules feature an internal PCB to provide a robust, low-profile solution with high performance and an extensive range. Typical applications include Wi-Fi networks, Internet of Things (IoT), Bluetooth low-energy devices, metering and utilities, point-of-sales, EV charging, Ethernet/wireless gateways, and healthcare.

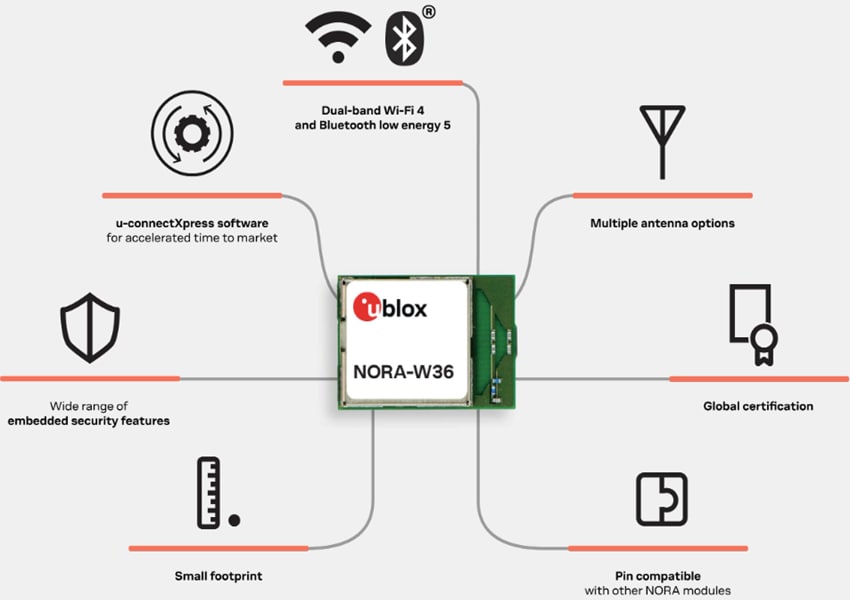

Features

NORA-W361:
- No internal antenna
NORA-W366:
- Equipped with an internal PCB trace antenna
Wi-Fi^® 4 (802.11a/b/ g/n) in the 2.4GHz and 5GHz bands
Bluetooth^® low energy 5 in the 2.4GHz ISM band
u-connectXpress software pre-flashed to the modules
Globally certified for use with the internal antenna or a range of external antennas

-40°C to 105°C operating temperature range
14.3mm x 10.4mm x 1.9mm dimensions
Authentications:
- WPA2/WPA3
- Wi-Fi enterprise security
- Bluetooth LE secure connections

Applications

Wi-Fi^® networks
Internet of Things (IoT)
Bluetooth^® low-energy applications
Metering and utilities
Point-of-sales
Healthcare

Access to laptops, mobile phones, and similar consumer devices
Smart buildings and homes
EV charging
Ethernet/wireless gateways

u-blox NORA-W36x Multiprotocol Modules

Features

Applications

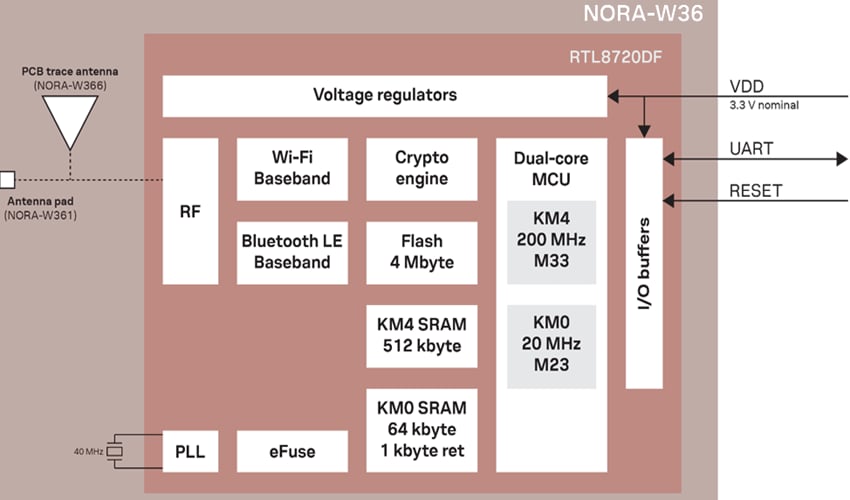

Block Diagram

NORA-W36
