u-blox NORA-W30 Multiprotocol Modules

u-blox NORA-W30 Multiprotocol Modules are small, stand-alone dual-band Wi-Fi^® and Bluetooth^® low energy Microcontroller Unit (MCU) modules. These modules operate at -40°C to 105°C temperature range, 2.4GHz to 5GHz bands Wi-Fi range, and IEEE 802.11a/b/g/n Wi-Fi. Typical applications include industrial automation, smart cities, smart buildings and homes, metering and utilities, healthcare, and EV charging.

The NORA-W30 modules include hardware security features like secure boot, trusted execution environment with Arm^® TrustZone^®, encrypted flash, protection of debug port, and a crypto acceleration engine. The wireless communication can be secured with WPA2/WPA3 authentication, TLS 1.2/1.3 encryption, BLUETOOTH^® LE secure connection pairing, and HTTPS.

Features

Dual-core MCU
Arm Cortex-M33 compatible processor for the main application and an Arm® Cortex-M23 compatible processor for low-power operation
-40°C to 105°C temperature range
2.4GHz to 5GHz bands Wi-Fi range
IEEE 802.11a/b/g/n Wi-Fi
Secure boot

Trusted execution environment with Arm TrustZone
Encrypted flash
Protection of debug port
Crypto acceleration engine
14.3mm x 0.4mm x 1.9mm dimensions

Applications

Wi-Fi networks
Internet of Things (IoT)
Bluetooth low-energy devices
Industrial automation
Access to laptops, mobile phones, and similar consumer devices
Smart cities

Smart buildings and homes
Metering and utilities
Point-of-sales
Healthcare
EV charging
Ethernet/wireless gateways

Resources

Datasheet
System Integration Manual

u-blox NORA-W30 Multiprotocol Modules

Features

Applications

Resources

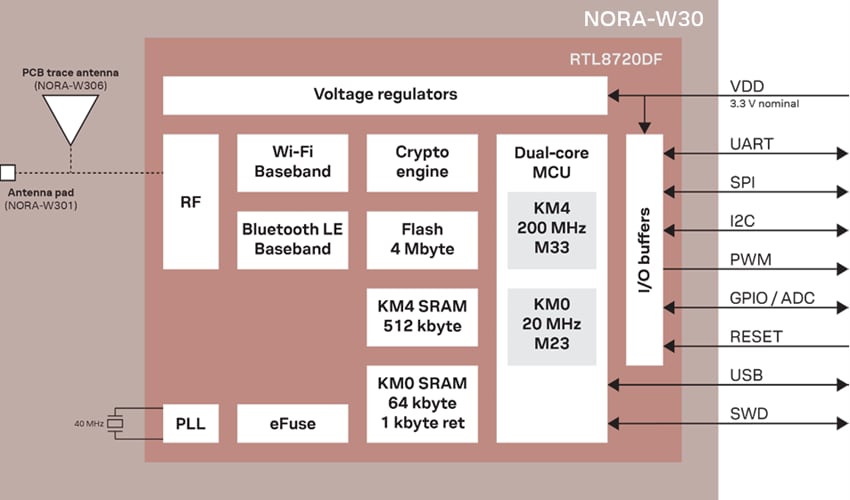

Block Diagram

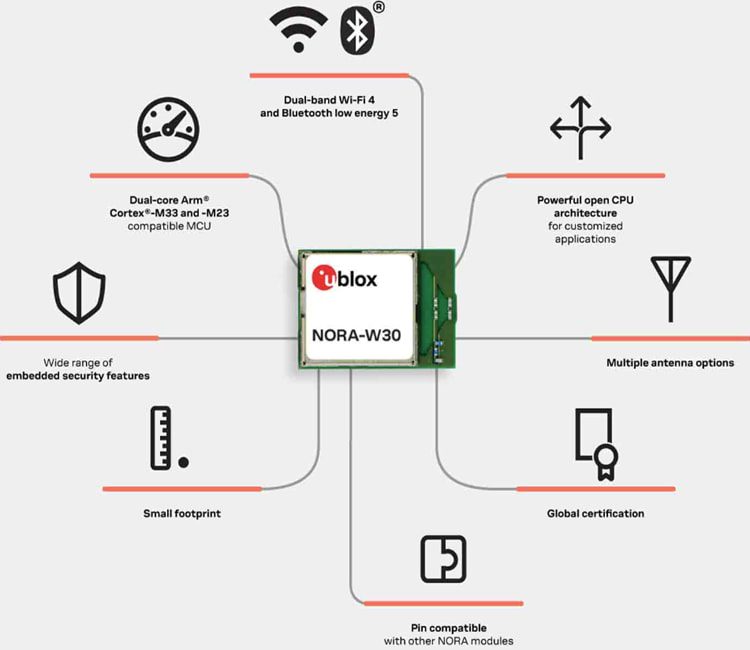

Feature Infographic

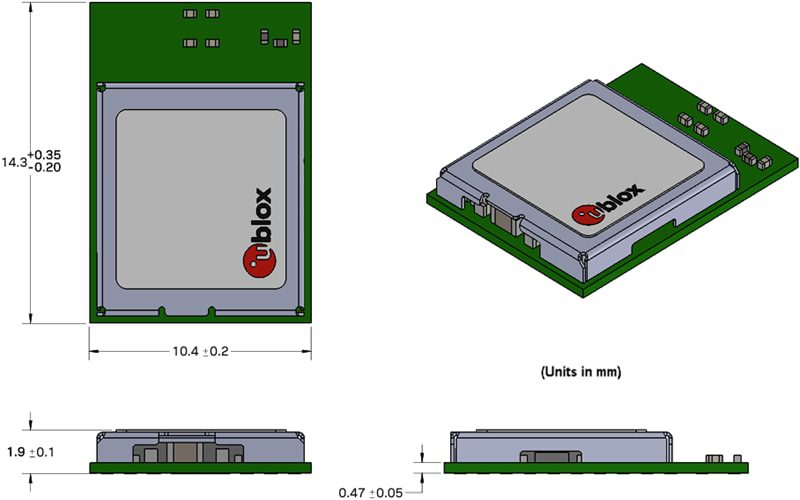

Dimension Diagram
