u-blox NORA-B1 BLUETOOTH® 5.2 Modules

u-blox NORA-B1 BLUETOOTH^® 5.2 Modules feature an integrated nRF5340 chipset and a powerful Arm^® Cortex^®-M33 dual-core application and network processors. The onboard application processor provides a Floating-Point Unit (FPU), Digital Signal Processor (DSP) instruction set, and CryptoCell™-312 security architecture. The NORA-B1 Modules support multiple peripherals over high-speed SPI, QSPI, USB, ADC, and PWM interfaces. The NORA-B1 Modules feature a 2.4GHz radio capable of handling Bluetooth Low Energy (BLE), 802.15.4 for Thread, Zigbee, and Nordic Semiconductor proprietary protocols. These Modules support multiple power supply configurations and offer multiple antenna choices, including a U.FL connector, antenna pin, and onboard PCB trace antenna options. The NORA-B1 modules provide scalable solutions for a broad range of market segments like smart cities and buildings, industrial automation, telematics, medical, and healthcare.

Features

Based on the Nordic Semiconductor nRF5340 Bluetooth 5 System on Chip (SoC)
Small stand-alone dual-core modules
Include Arm Cortex-M33 application and network processors
802.15.4 for Thread, Zigbee, and Nordic semiconductor proprietary protocols
Multiple antenna options
14.3mm x 10.4mm x 1.8mm

Support for multiple peripherals over:
- High-speed Serial Peripheral Interface (SPI)
- Queued SPI (QSPI)
- Universal Serial Bus (USB) interface
- Analog-to-Digital (ADC) interface
- Pulse Width Modulation (PWM) interface

Applications

Industrial automation
Advanced wearables
Smart buildings and cities
Low power sensors
Wireless-connected and configurable equipment

Point-of-Sale (PoS)
Medical and health devices
Real-Time Location Systems (RTLS)
Indoor positioning
Asset tracking

u-blox NORA-B1 BLUETOOTH® 5.2 Modules

Features

Applications

Videos

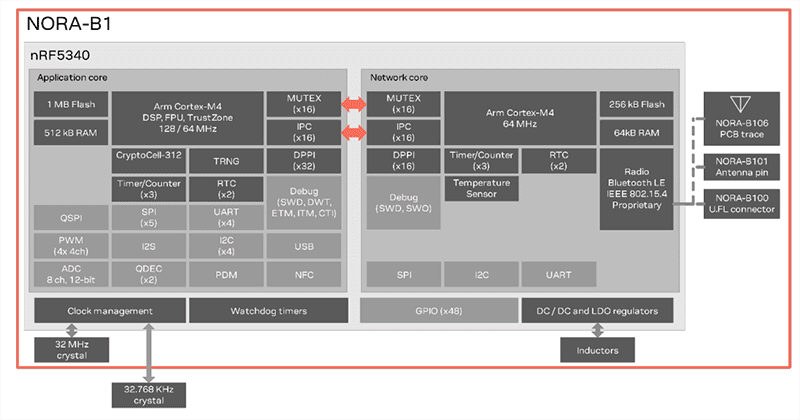

Block Diagram
