u-blox NINA-B50 Bluetooth® Modules

u-blox NINA-B50 Bluetooth^® Modules are stand-alone Bluetooth 5.3 Low-Energy (LE) modules based on the NXP K32W1480 chip. These modules feature a powerful multicore MCU with an Arm^® Cortex^®-M33, state-of-the-art power performance, and support for 802.15.4 with Thread^®, Matter™, and Zigbee™. The NINA-B50 Bluetooth modules include a complete set of enhanced security features with NXP EdgeLock and operate in an extended temperature range of up to 85°C. Typical applications include industrial automation, smart buildings and cities, low-power sensors, point-of-sales, and healthcare.

Features

Bluetooth^® LE module for automotive and professional applications
Bluetooth LE 5.3, plus Thread^®, Zigbee™, and Matter™ for professional-grade modules
FlexCAN and LIN bus interfaces for automotive-grade modules

Powerful Cortex^®-M33 with open CPU architecture for customized applications
Full set of enhanced security features with NXP EdgeLock
Global certification

Specifications

1.71V to 3.60V power supply range
Dimensions:
- 10.0mm x 11.6mm x 2.4mm (NINA-B501)
- 10.0mm x 15.0mm x 2.4mm (NINA-B506)

Extended temperature range of up to 85°C
<1.0g weight
RoHS 2 and RoHS 3 compliant

Applications

Industrial automation
Smart buildings and cities
Low power sensors

Wireless-connected and configurable equipment
Point-of-sales
Healthcare

u-blox NINA-B50 Bluetooth® Modules

Features

Specifications

Applications

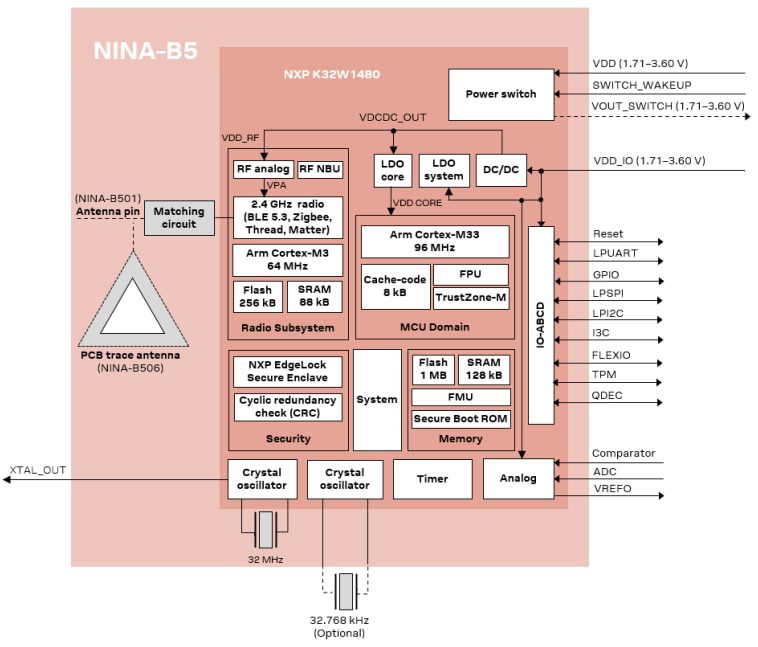

Block Diagram
