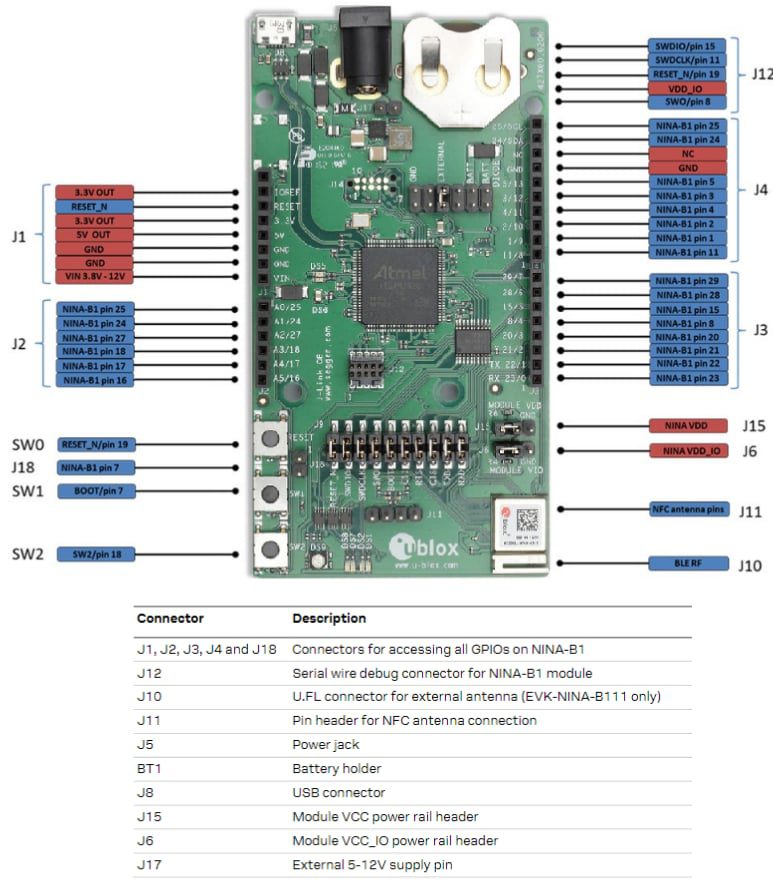

u-blox NINA-B1 Series Evaluation Boards are designed to evaluate NINA-B1 series modules. The evaluation kits include the NINA-B1 evaluation board, quick start guide, NFC antenna, and USB cable. These NINA-B1 evaluation boards are available in EVK-NINA-B111 and EVK-NINA-B112 versions depending on the NINA-B1 series module that is mounted. The EVK-NINA-B111 board comes with the NINA-B111 module and a U.FL coaxial connector for connecting to the external antennas. Whereas the EVK-NINA-B112 board comes with the NINA-B112 module and an onboard antenna.
The NINA-B1 evaluation boards can be powered through USB, external power supply, or coin cell battery. These boards come with an onboard debug MCU that allows serial communication and flashing/debugging over USB. The NINA-B1 boards can be measured through current measurement with ampere-meter and current measurement with an oscilloscope.
