u-blox NEO-7 GNSS Modules

u-blox NEO-7 GNSS Modules offer high sensitivity and minimal acquisition times in the industry-proven NEO form factor. These modules combine a high level of integration capability with flexible connectivity options in a miniature package. The NEO form factor allows easy migration from previous NEO generations. These modules feature sophisticated RF-architecture and interference suppression that ensures maximum performance even in GNSS-hostile environments. The NEO-7 modules use GNSS chips that are AEC-Q100 and are manufactured in ISO/TS 16949 certified sites. The NEO-7M module is optimized for cost-sensitive applications, while the NEO-7N module provides the best performance and easy RF integration.

Features

  • Interfaces:
    • Universal Asynchronous Receiver-Transmitter (UART)
    • Universal Serial Bus (USB)
    • Serial Peripheral Interface (SPI)
    • DDC (I2C compliant)
  • RTC crystal
  • GNSS types:
    • GPS/QZSS
    • GLONASS


Specifications

  • NEO-7M:
    • 1.65V to 3.6V supply voltage range
  • NEO-7N:
    • 2.7V to 3.6V supply voltage range
  • 56 channels receiver type
  • 30ns RMS
  • 0.25Hz to 10MHz frequency range of time pulse signal

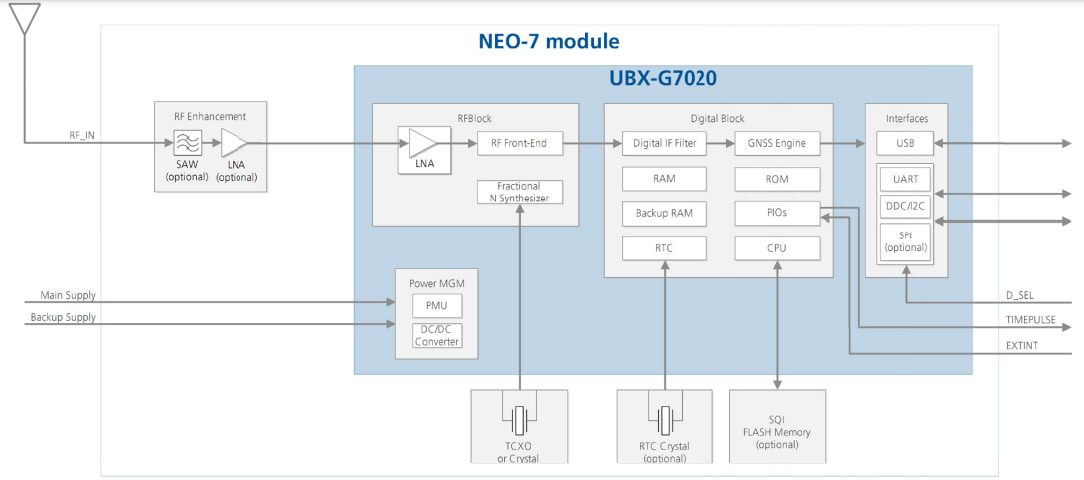

Block Diagram

Block Diagram - u-blox NEO-7 GNSS Modules
