u-blox M2-JODY-W2 Modules

u-blox M2-JODY-W2 Modules offer the maximum performance of the JODY-W2 Wi-Fi® 5 combined with a BLUETOOTH® 5.2 connectivity module and the flexibility of a M.2 card. The M.2 card is based on the NXP 88W8987 chipset. The M2-JODY-W2 module authorizes 1×1 single-antenna 802.11ac Wi-Fi operation, with data rates up to 433Mbit/s, while a second antenna is dedicated for Bluetooth operation. The M2-JODY-W2 host-based module requires a host processor running a Linux or Android operating system.

JODY-W2 modules can be operated in the following modes:

• Wi-Fi 1×1 802.11a/b/g/n/ac in 2.4GHz or 5GHz
• Dual-mode Bluetooth 5.2, including audio, can be operated fully simultaneously with Wi-Fi

Features

M.2 Type 2230 Key E form factor
Wi-Fi 1×1 SISO IEEE 802.11ac data rates up to 433Mbit/s (PHY, MCS9), beamforming
Supports 802.11d/e/h (DFS)/i/k/r/u/v/w/ai
Wi-Fi 20MHz, 40MHz, and 80MHz channels
Bluetooth BR/EDR and Bluetooth low energy v5.2 supporting 2Mbit/s
Chipset is compliant with AEC-Q100

SDIO host interface
PCM interface for Bluetooth audio
Access point mode for up to 8 stations
Hardware encryption engines of AES and TKIP
Security with WPA, WAPI, WPA2, WPA3, WPS, and Easy Connect

Applications

Automotive applications
- In-car Access Point for internet access
- In the car, applications such as Apple Car-Play, Miracast, and so on
- Rear-seat display
- Rapid sync-n-go applications and fast content download to the vehicle
- Hands-free equipment (BLUETOOTH®)

Industrial applications
- Manufacturing floor automation, wireless control terminals, and point-to-point backhaul
- Machine control
- Medical in-hospital applications
- Security and surveillance
- Outdoor content distribution
- Robust wireless connectivity in a broad range of industrial applications

u-blox M2-JODY-W2 Modules

Features

Applications

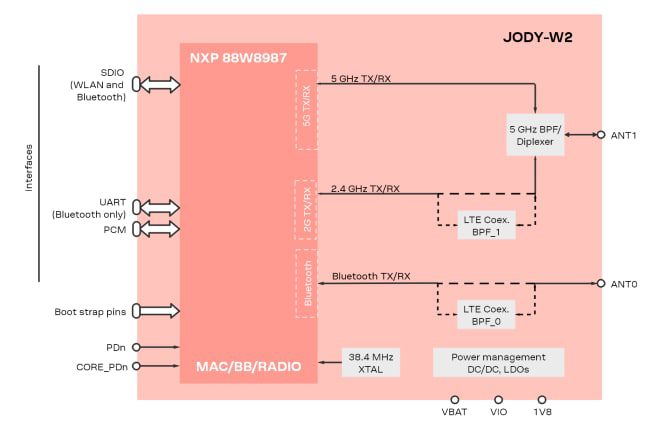

Block Diagram
