u-blox EVK-R6 Evaluation Kits and Adapter Boards are designed to easily demonstrate the functionality and versatility of the LARA-R6 series multi-mode LTE Cat 1/3G/2G cellular modules. The EVK-R6001 kit is for the LARA-R6001, the EVK-R6401 kit is for the LARA-R6401, and the EVK-R6801 kit evaluates the LARA-R6801. The EVK-R6 kits are powerful and easy-to-use tools for simplifying the evaluation of the LARA-R6.

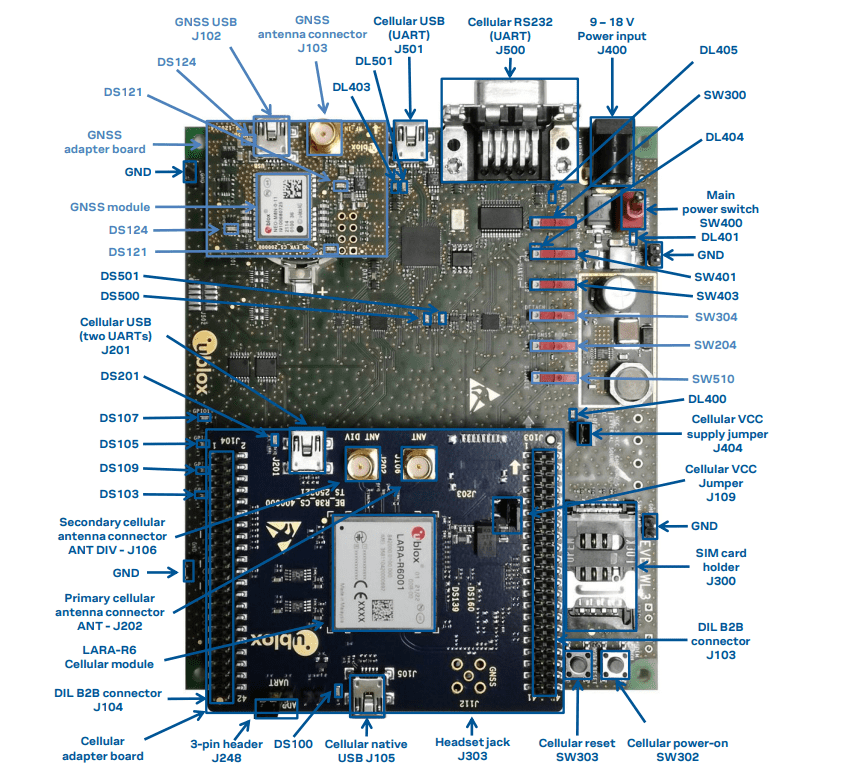

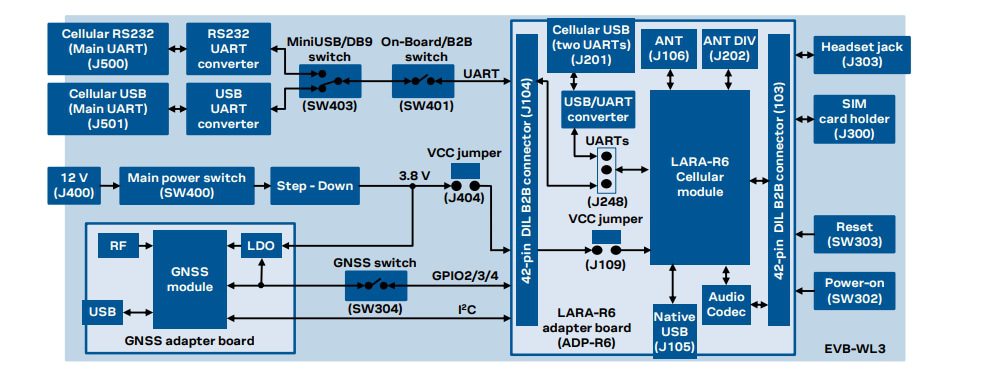

The EVK-R6 consists of three boards:
• The lower one, called EVB-WL3 or EVB, includes the power supply and other peripherals for the cellular module (such as SIM card holder, reset button, and power-on button).
• The cellular adapter board, called ADP-R6, incorporates the cellular module, the cellular antenna connectors (ANT / ANT DIV), the USB “native” connector (J105), the USB “two UARTs” connector (J201), the UARTs routing switch (J248), the VCC jumper (J109) and an audio codec.
• The GNSS adapter board, called ADP-GNSS, comprises the u-blox GNSS module, the GNSS antenna connector, and the USB connector for the GNSS module.
