u-blox EVK-NORA-B12x Evaluation Kits

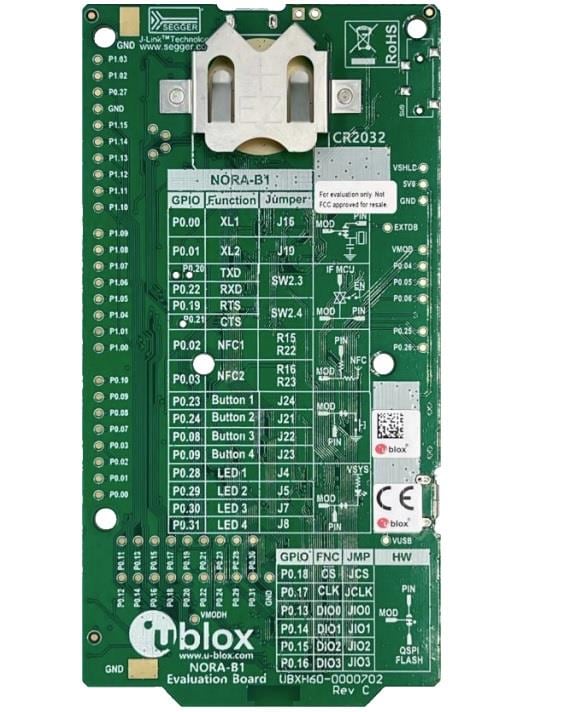

u-blox EVK-NORA-B12x Evaluation Kits evaluate the features and functionalities of the NORA-B12x series modules that house the Nordic Semiconductor nRF5340 dual-core RF System on Chip (SoC). The evaluation kits provide a great starting point for almost any Bluetooth^® 5.2 Low Energy (LE), Thread, or Zigbee^® projects. All the features of the NORA-B12x modules are easily accessed from the evaluation board with a simple USB connection to provide power, programming, and virtual COM ports. The EVK-NORA-B12x evaluation kits feature four user buttons, USB peripheral connector, user LEDs, and a reset button. Additionally, 46 GPIO signals are available on headers that are compatible with the Arduino^® form factor. The EVK-NORA-B12x evaluation kits exhibit an NFC antenna connector, 32.768kHz crystal, CR2032 coin cell battery holder, and USB peripheral connector as well.

Features

Used for evaluation of NORA-B1 modules:
- NORA-B120 or, NORA-B121: EVK-NORA-B120
- NORA-B126: EVK-NORA-B126
On-board programming and debugging (SEGGER J-Link-OB)
Able to program external modules
Virtual COM ports over USB
46 GPIO (EVK-NORA-B12)
Buttons and LEDs for user interaction

Compatible with Arduino^® Uno shields
NFC antenna connector
32.768kHz Crystal
CR2032 coin cell battery holder
USB peripheral connector
Power input connectors
PA/LNA support (EVK-NORA-B12 only)

Kit Contents

EVK-NORA-B120 kit:
- EVK-NORA-B12 evaluation board with NORA-B120 module
- Micro-USB cable
- NFC antenna
- 2.4GHz U.FL antenna kit
- 10-pin SWD programming cable, 2×5 headers on 1.27mm centers

EVK-NORA-B126 kit:
- EVK-NORA-B12 evaluation board with NORA-B126 module
- Micro-USB cable
- NFC antenna
- 2.4GHz antenna integrated onto NORA-B126 module (no external antenna)
- 10-pin SWD programming cable, 2×5 headers on 1.27mm centers

u-blox EVK-NORA-B12x Evaluation Kits

Features

Kit Contents

Legend for GPIO solder Bridge Jumpers
