u-blox EVK-NINA-B4 Evaluation Kits

u-blox EVK-NINA-B4 Evaluation Kits are a versatile platform that allows prototyping of a variety of extremely low-powered IoT applications. The EVK-NINA-B4 features Bluetooth 5.1, NFC, and IEEE 802.15.4 and provides access to the 38 GPIO pins and interfaces that are supported on NINA-B4 modules. The EVK-NINA-B4 evaluation boards feature a dedicated USB connector for the NINA-B4 USB interface, simple USB drag-n-drop programming, and a SEGGER J-Link debug interface. These boards operate at 1.7V to 3.6 V supply voltage range.

Features

u-blox NINA-B4 Bluetooth Low Energy module based on the Nordic nRF52833 SoC
- Full Bluetooth 5.1 support
- NFC tag functionality
- 802.15.4 PHY
- Integrated Arm Cortex-M4 microcontroller with 512kB internal flash and 128 kB RAM, and 64 MHz system clock
- USB 2.0
Supports different interfaces that can be configured to any of the 38 available GPIO pins:
- 8 analog capable inputs
- 16 PWM capable outputs
- 4x SPI
- 2x UART with HW flow control
- 2x I2C
- 1x I2S
- 1x PDM input
- 1x Quadrature decoder
EVK-NINA-B41x:
- Support for u-connectXpress software
EVK-NINA-B40x:
- Support for developing your own software on the Open CPU NINA-B4 module

Full UART to USB converter with a Virtual COM port, allowing control of the extended UART features of the u-blox u-connect software
RGB LED and push-buttons
Dedicated USB connector for the NINA-B4 USB interface
Additional flash memory can be added to the board for use by the NINA-B4 module
On-board J-Link debugger/programmer
- Mass Storage Device interface to PC, for drag-n-drop programming
- Debug port
- An additional Virtual COM port that, for example, maybe connected to add-on boards or to a debug UART on the NINA-B4
- Dedicated USB connector for the NINA-B4 USB interface
- Additional flash memory can be added to the board for use by the NINA-B4 module
Arduino UNO R3 and Raspberry Pi compatible pin header interfaces
Jumper headers and level shifters allow for flexible powering options of the NINA-B4 module
Battery holder supporting CR2032 coin cell batteries

Specifications

Multiple board power supply options:
- 5V to 12V power plug
- 5V USB supply
- 5V to 12V Arduino V_IN input

1.7V to 3.6 V supply voltage range

Kit Contents

NINA-B4 evaluation board
2.4 GHz antenna with U.FL connector (EVK-NINA-B400 and EVK-NINA-B410)

NFC antenna
USB cable

u-blox EVK-NINA-B4 Evaluation Kits

Features

Specifications

Kit Contents

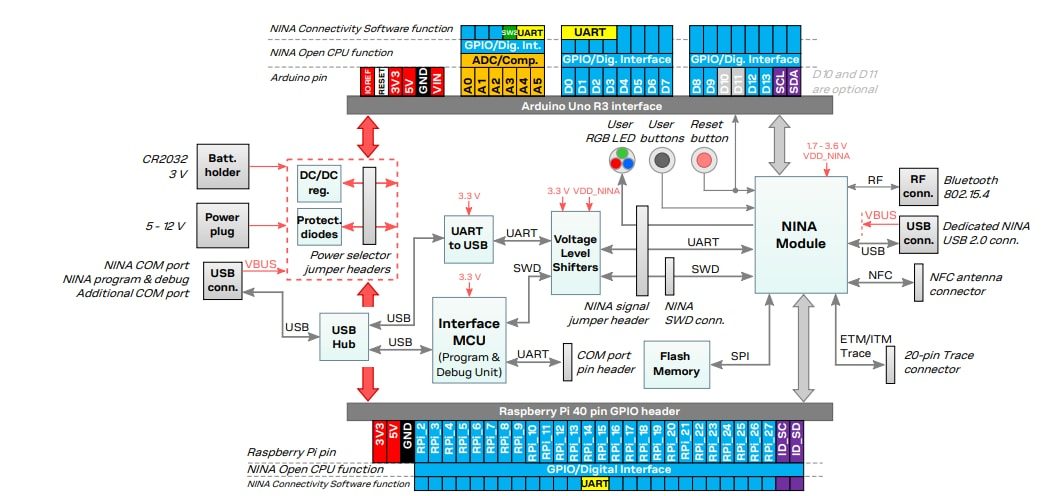

Block Diagram
