u-blox EVK-M91-00 Evaluation Kit

u-blox EVK-M91-00 Evaluation Kit evaluates and tests M9 positioning technology. This evaluation kit features a built-in USB interface that provides both power supply and high-speed data transfer, and the possibility to connect through 14 pin connector. The EVK-M91 evaluation kit offers versatile interfaces and measurement points that enable advanced evaluation needs. This evaluation kit includes a switch to select between I²C (and RS232) and the SPI communication interface. The EVK-M91 evaluation kit supports u‑blox AssistNow online, AssistNow offline, and AssistNow autonomous A-GNSS services. This kit operates at a 5V supply voltage and -40°C to 65°C temperature range. This kit is ideal for use in laboratories, vehicles and outdoor locations, PDA, and notebook PC.

Features

Extensive visualization and evaluation of M9 features
Supports u‑blox AssistNow online, AssistNow offline, and AssistNow autonomous A-GNSS services
All ports accessible outside
USB (V2.0 compatible) available for power supply and data transfer
14-pin connector for access to interface pins and current measurement

9-pin D-SUB female connector to provide a standard RS232 interface
Switch to select between I²C (and RS232) and SPI communication interface
LED to indicate power supply and GNSS operation
Reset (RST) button to allow the restart

Specifications

105mm x 64mm x 26mm board dimensions
5V operating supply voltage

-40°C to 65°C operating temperature range

Applications

Laboratories
Vehicles and outdoor locations

Notebook PC
PDA

Kit Contents

Compact 105mm x 64mm x 26mm EVK-M91 unit
USB 2.0 cable (type C)

Active GNSS antenna with 3m cable
EVK welcome card

u-blox EVK-M91-00 Evaluation Kit

Features

Specifications

Applications

Kit Contents

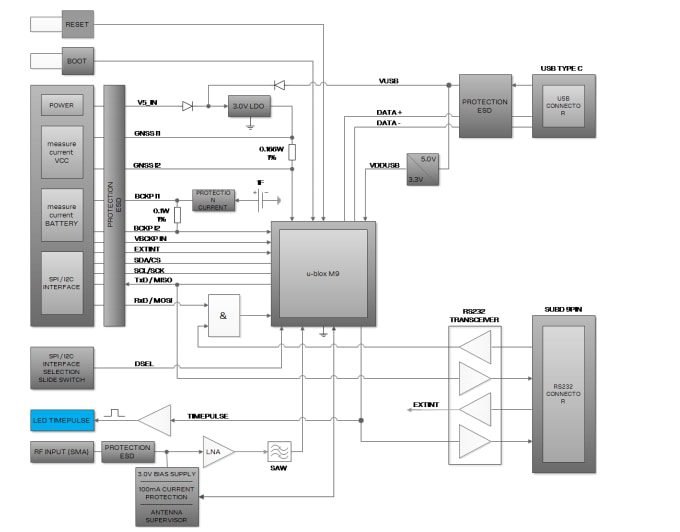

Block Diagram
