u-blox EVK-M101 GNSS Evaluation Kit

u-blox EVK-M101 GNSS Evaluation Kit is used to evaluate the performance of u‑blox M10 positioning technology. The kit comes in a rugged metal housing with a compact size of 105mm x 64mm x 26mm. The 14-pin front connector gives access to all chip interface pins and allows current measurements. The application board can interface the embedded u‑blox M10 chip through the SPI or I²C bus.

The EVK-M101 Evaluation Kit comes with u-center PC software for configuration, evaluation, and debugging of the u-blox GNSS products and services. u-center provides useful assistance during all phases of a system integration project.

The EVK-M101 is powered through the USB interface. A PC running u-center can be connected via the USB or RS232 interface. On-board power consumption sensors allow measurements over time by means of the included u-center GNSS evaluation software.

Features

Easy-to-use kit including antenna, cabling, and software package for evaluation of all u‑blox M10 GNSS features
Rugged housing with pin-header for full access to all I/O ports of the u‑blox M10 chip
On-board power consumption sensors

Applications

Smartwatches
Pet trackers
Asset trackers

Vehicle trackers
Personal navigation devices
Wi-Fi 6E access points

Products Available

EVK-M101
- u-blox M10 GNSS Evaluation Kit for MAX-M10S and MIA-M10Q with TCXO oscillator

EVK-M101C
- u-blox M10 GNSS Evaluation Kit for MAX-M10M and MIA-M10C with crystal oscillator

Kit Contents

Compact 105mm x 64mm x 26mm EVK-M101 unit
Type C USB cable
Active GNSS L1 band antenna with 3 m cable

Resources

Datasheet
User Guide

u-blox EVK-M101 GNSS Evaluation Kit

Features

Applications

Products Available

Kit Contents

Resources

Videos

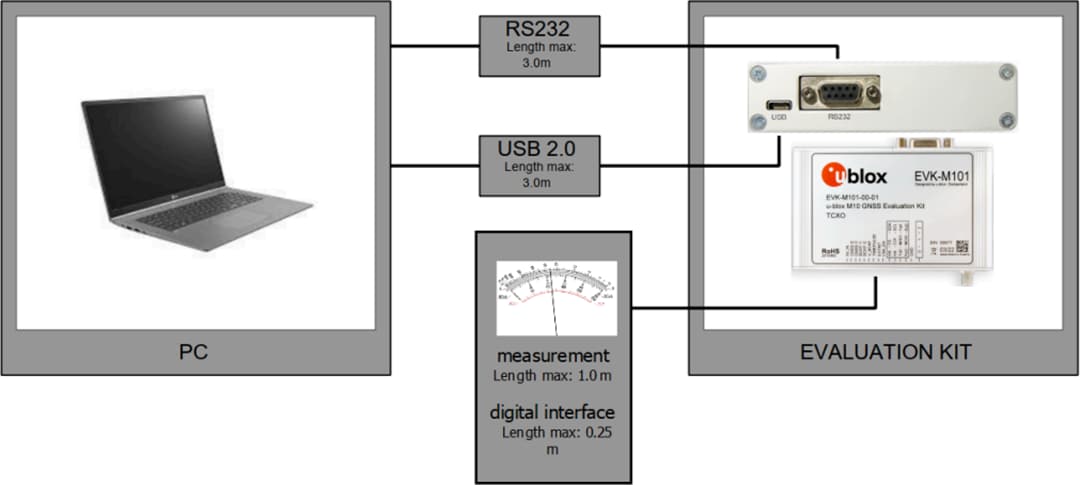

Test Setup

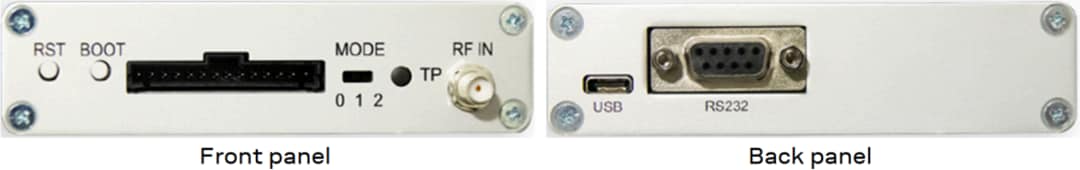

Panel Views
