TXC 7R SMD Glass Sealed Crystals

TXC 7R SMD Glass Sealed Crystals are compact crystals that measure 2.0mm x 1.6mm x 0.6mm. The crystals offer a frequency range of 20MHz to 64MHz, frequency stability of 10ppm to 30ppm, and a load capacitance of 7pF to 20pF. TXC 7R SMD Glass Sealed Crystals are ideal for portable consumer products, home electronics, computer peripherals, notebooks, and hard disks.

Features

20MHz to 64MHz frequency range
2.0mm x 1.6mm x 0.6mm
4 pads SMD glass sealed crystal

High-reliable environmental performance
Contains Pb in sealing glass exempted by RoHS directive

Applications

Portable consumer products
Home electronics
Computer peripherals
Notebooks

Hard disks
Applications for NB, DSC, USB, and variety of compact portable consumer products reference clocks

Specifications

±10 ppm, ±20 ppm, or specify frequency tolerance at 25°C
±10 ppm, ±20 ppm, or specify frequency stability over temperature range
2pF shunt capacitance (CO)

1µ to 100µW (10µW typical) drive level
7pF to 20pF, or specify load capacitance
±3ppm/year max. aging at 25°C

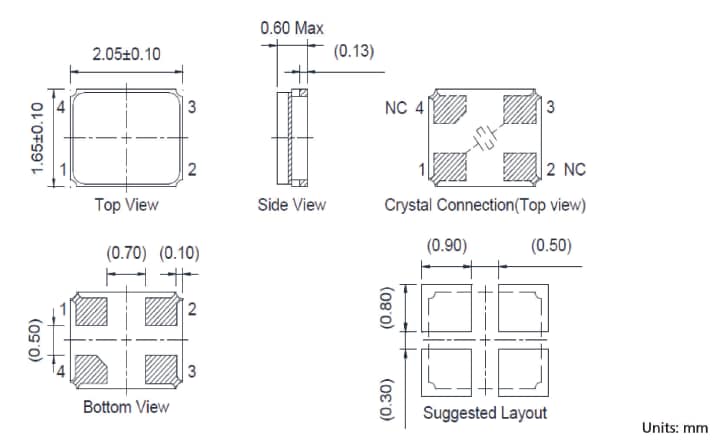

Dimensions

TXC 7R SMD Glass Sealed Crystals
