Trenz Electronic TE0782 Industrial-Grade System on Modules

Trenz Electronic TE0782 Industrial-Grade System on Modules (SoMs) are based on the Xilinx Zynq-7000 SoC (XC7Z035, XC7Z045 or XC7Z100). The modules have a form factor of 8.5cm x 8.5cm and are available in several versions. All parts cover an industrial temperature range of -40°C to +85°C. The module operating temperature range depends on the design and the cooling solution.

Features

Xilinx Zynq-7000 XC7Z035, XC7Z045 or XC7Z100 SoC
Rugged for shock and high vibration
Large number of configurable I/Os are provided via rugged high-speed stacking strips
Dual ARM Cortex-A9 MPCore
- 1GB RAM (32-bit wide DDR3)
- 32MB QSPI Flash memory
- 2 x high-speed USB2 ULPI transceiver PHY
- 2 x Gb (10/100/1000Mbps) Ethernet transceiver PHY
- 4GB eMMC (optional up to 64GB)
2 x MAC-address EEPROMs
Optional 2x 64MB HyperFLASH or 2x 8MB HyperRAM (max 2x 32MB HyperRAM)
Temperature-compensated real-time clock (RTC)
Si5338A programmable quad PLL clock generator for GTX transceiver clocks
Plug-on module with 3 x 160-pin high-speed strips
- 16 GTX high-performance transceiver
- 2x GT transceiver clock inputs
- 254 FPGA I/Os (125 LVDS pairs)
On-board high-efficiency switch-mode DC-DC converters
System management
eFUSE bit-stream encryption
AES bit-stream encryption
Evenly spread supply pins for good signal integrity
User LED

Trenz Electronic TE0782 Industrial-Grade System on Modules

Features

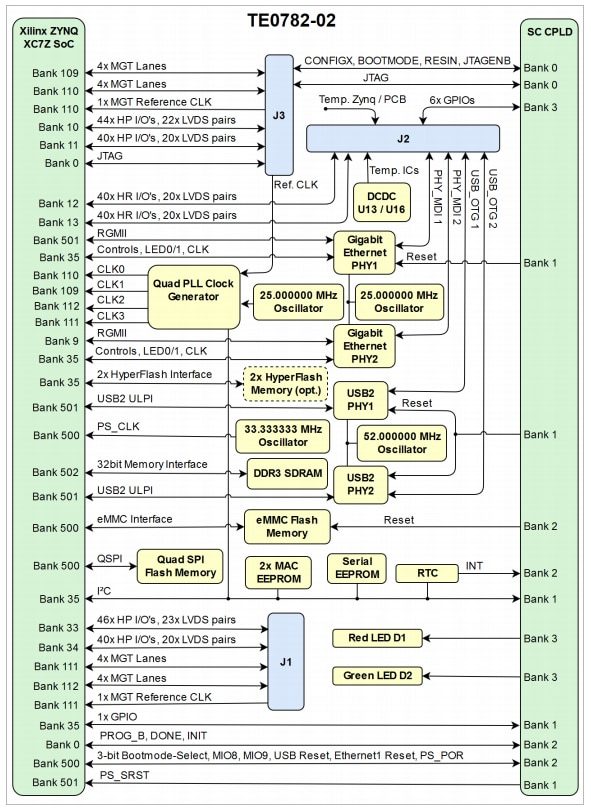

Block Diagram
