Trenz Electronic TE0741 Industrial-Grade FPGA Modules

Trenz Electronic TE0741 Industrial-Grade FPGA Modules integrate a Xilinx Kintex-7 FPGA, and 32MB SPI Flash memory for configuration and operation. The devices feature powerful switching-mode power supplies for all onboard voltages. A large number of configurable I/Os is provided via rugged high-speed stacking strips. The TE0741 module is available in four different logic densities (70T, 160T, 325T, and 410T). The 70T and 160T can be programmed with the free Xilinx Vivado WebPACK software.

Features

Industrial-grade Xilinx Kintex-7 FPGA module (70T*, 160T*, 325T, 410T)
* Devices supported by the free Xilinx Vivado WebPACK software
256Mb (32MB) Quad SPI Flash memory (for configuration and operation) accessible through:
- FPGA
- JTAG port (SPI indirect (Bus width x4))
8 GTX transceivers
FPGA configuration through:
- JTAG (B2B connector)
- SPI Flash memory
25MHz low jitter oscillator with shutdown control
Programmable quad PLL clock generator
Onboard high-efficiency DC-DC converters
- GTX voltage regulators with control enable
- Core voltage regulator: 20A (2 x Enpirion DC-DC regulators with load-sharing)
- Supply voltages: either 3.3V or 3.3V and 5V
Plug-on module with two 100-pin and one 60-pin high-speed hermaphroditic stacking strips
Up to 144 (94 for 70T) FPGA I/O pins are available on B2B strips (up to 65 LVDS pairs possible)
2 user LEDs, 1x DONE FPGA pin LED, 1 system controller status LED
System management and power sequencing
AES bit-stream encryption
eFUSE bit-stream encryption
Evenly spread supply pins for good signal integrity

Trenz Electronic TE0741 Industrial-Grade FPGA Modules

Features

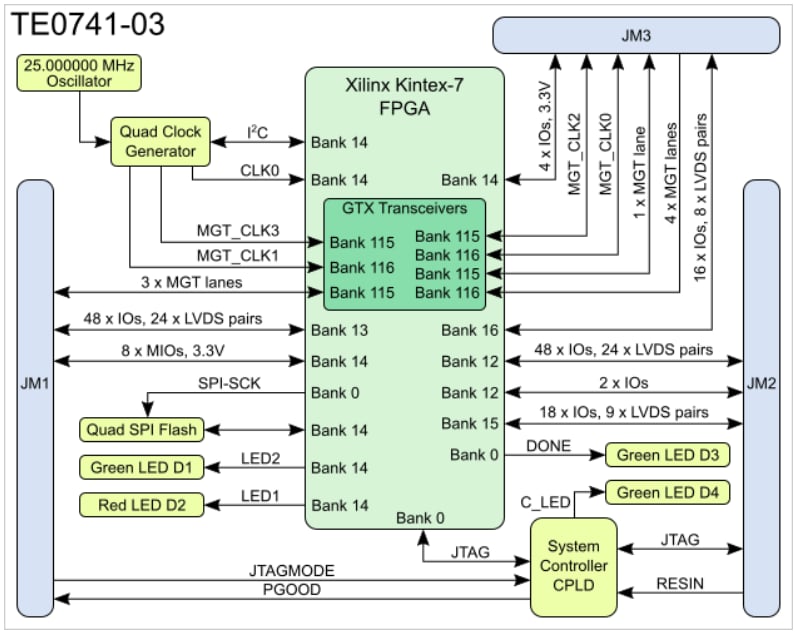

Block Diagram
