Trenz Electronic TE0725 FPGA Modules

Trenz Electronic TE0725 FPGA Modules are low-cost, small-sized devices that integrate a Xilinx Artix-7 (15-100T). The modules feature 32MB of Flash memory for configuration and operation. They also feature an I²C EEPROM, 3.3V single power supply with onboard voltage regulators, and JTAG/UART connector.

Features

Xilinx Artix-7 XC7A35T (A15 to A100T)
Commercial temperature grade (Industrial on request)
32MB Flash memory
2 x 50-pin headers with 2.54mm pitch, ideal for breadboard use
87 I/Os (42 + 42 + 3)
100MHz system clock
I²C EEPROM
3.3V single power supply with onboard voltage regulators
73mm x 35mm size
JTAG/UART connector
2 LEDs
Optional HyperRAM (8MB to 32MB)
Optional POF fiber optical adapter (125/250Mbps)

Trenz Electronic TE0725 FPGA Modules

Features

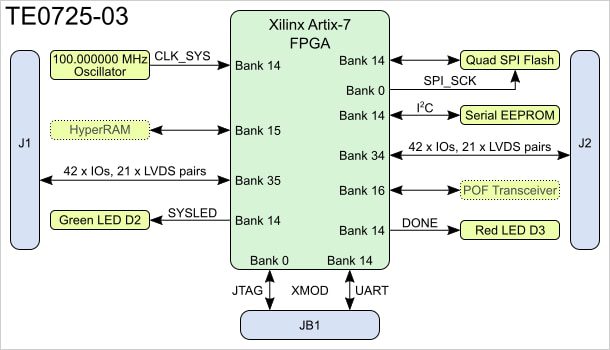

Block Diagram
