Trenz Electronic TE0711 Industrial-Grade FPGA Modules

Trenz Electronic TE0711 Industrial-Grade FPGA Modules integrate a Xilinx Artix-7 FPGA, and 32MB Quad SPI Flash memory for configuration and operation as well as powerful switching-mode power supplies for all onboard voltages. Numerous configurable I/O’s are provided via rugged high-speed strips. All Trenz Electronic SoMs in the 4cm x 5cm form factor are mechanically compatible.

Features

Industrial-grade Xilinx Artix-7 (15T to 100T) FPGA, supported by the free Xilinx Vivado WebPACK tool
Rugged for shock and high vibration
FTDI FT2232H USB 2.0 high-speed to UART/FIFO
32MB QSPI Flash memory (with XiP support)
100MHz MEMS oscillator
Plug-on module with 2 x 100-pin and 1 x 60-pin high-speed hermaphroditic strips
178 FPGA I/Os (84 differential pairs) are available on board-to-board connectors
Onboard high-efficiency DC-DC converters
- 4.0A x 1.0V power rail
- 1.0A x 1.8V power rail
- 1.0A x 1.5V power rail
System management and power sequencing
eFUSE bit-stream encryption
AES bit-stream encryption
User LED
Evenly spread supply pins for good signal integrity
Assembly options for cost or performance optimization are available

Trenz Electronic TE0711 Industrial-Grade FPGA Modules

Features

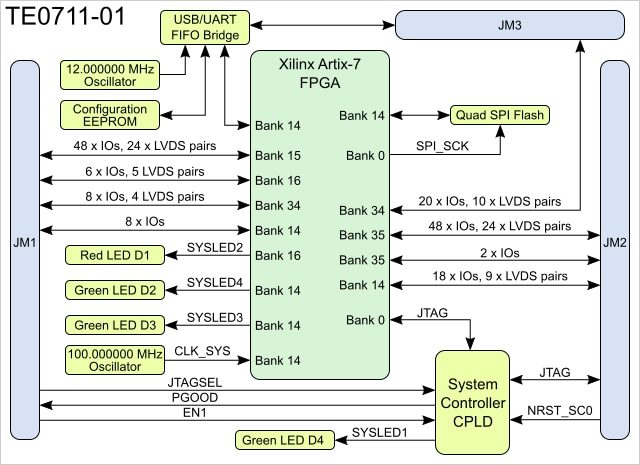

Block Diagram
