TRACO Power TIB-BCMU Battery Controller Module

TRACO Power TIB 240-124-BCMU is a 240W Battery Controller Module designed to turn existing AC/DC power converters into fully functional uninterruptible power supply solutions. TRACO Power TIB-BCMU is powered by an integrated microprocessor, the battery controller module ensures that the 24V_DC connected lead-acid batteries maintain a full charge. The device performs periodic impedance measurements to alert the user in case of a rare battery failure or an accidental disconnection. During battery backup operation, the internal DC/DC power conversion stage keeps the output voltage constant. Battery terminals are protected with a user-serviceable 15A blade-type fuse. TRACO TIB-BCMU includes EN/IEC/UL 61010-1 certification for measurement, laboratory, and control equipment and EN 62040-1 for uninterruptible power supplies.

Features

Compact metal enclosure with DIN-rail mount
Uninterruptible power supply function
For use with 24V lead-acid batteries
Constant output voltage
Efficiency
- >96% during battery operation
- >98% during pass-through operation

Integrated EN 55011 class B EMI filter
Battery OK, input OK, and output OK signals
Short-circuit, reverse-polarity, overload, and deep-discharge protection
Three-year warranty

Applications

Measurement equipment
Lab equipment

Control equipment
Uninterruptible power supplies

Specifications

24V_DC nominal input voltage
10A maximum output current

240W maximum power
24V lead-acid backup battery pack

TRACO Power TIB-BCMU Battery Controller Module

Features

Applications

Specifications

Videos

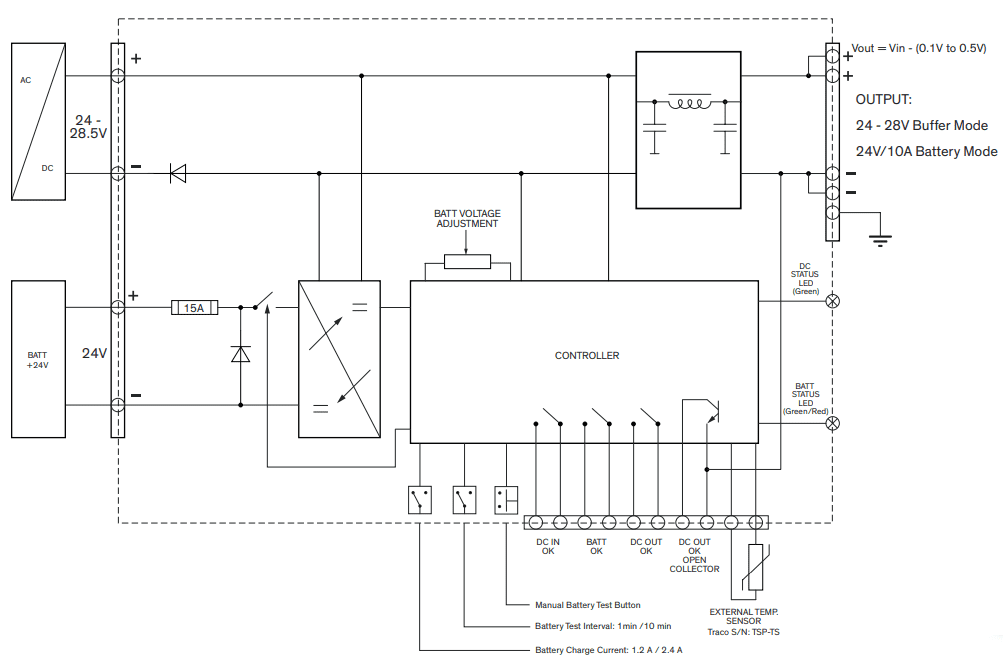

Block Diagram
