TRACO Power TEN 60WIR, Rugged 60W DC/DC Converters

TRACO Power TEN 60WIR series are single and dual-output, ruggedized 60W DC/DC converters designed for railway and industrial applications with an ultra-wide 4:1 input voltage range. The series provides increased resistance against electromagnetic interference, shock/vibration, and thermal shock. The standard version comes with a specifically designed, pre-assembled heatsink in a 50.8mm x 40.7mm x 25.5mm overall package (2″ x 1.6”) extending the thermal performance to -40° to +70°C ambient without derating. TRACO Power TEN 60WIR offers high efficiency of up to 92% and is approved to EN 50155 and EN 61373 standards for railway and transportation systems as well as IEC/EN/UL 62368-1 approved.

Features

Standard stocking model with heatsink: 50.8mm x 40.7mm x 25.5mm (2″ x1.6″)
Compact 50.8mm x 25.4mm (2″ x 1″) package (without heatsink)
Ultra-wide 4:1 input voltage range
- 9V_DC to 36V_DC, 18V_DC to 75V_DC, or 36V_DC to 160V_DC
EN 50155 and EN 61373 approval for railway applications
Qualification for fire behavior, according to EN 45545-2
IEC/EN/UL 62368-1 approved

-40°C to +90°C operating temperature range
3000V_DC I/O isolation
High efficiency up to 92%
Under-voltage lockout circuit
Adjustable output voltage and Remote On/Off
Three-year product warranty

TRACO Power TEN 60WIR, Rugged 60W DC/DC Converters

Features

Videos

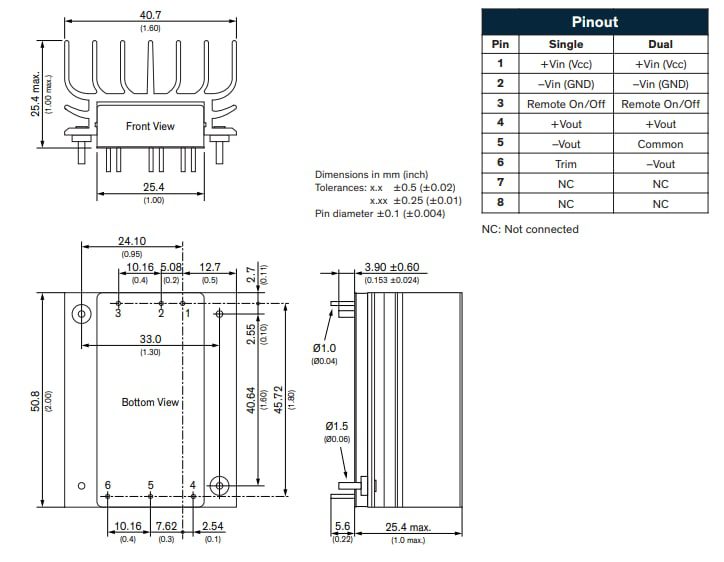

Outline Dimensions & Pinout
