Toshiba XCUZ Zener Diodes

Toshiba XCUZ Zener Diodes are designed for automotive usage and feature 600mW power dissipation at 150°C junction temperature. These XCUZ series zener diodes offer ±12kV, ±20kV, and ±30kV electrostatic discharge voltage. These zener diodes are AEC-Q101 qualified and available in the SOD-323 package. Typical applications include automotive and voltage surge protection.

Features

  • 600mW power dissipation
  • ±12kV, ±20kV, and ±30kV electrostatic discharge voltage
  • The typical voltage of VZ is accorded to the E24 series
  • AEC-Q101 qualified
  • Small package
  • -55°C to 150°C storage temperature range

Applications

  • Automotive
  • Voltage surge protection

Internal Circuit

Toshiba XCUZ Zener Diodes

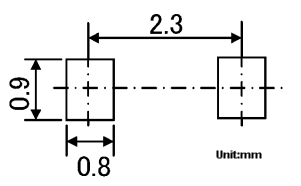

Dimension Diagram

Mechanical Drawing - Toshiba XCUZ Zener Diodes
