Toshiba TXZ+ General Purpose LCD Display Controllers

Toshiba TXZ+ General Purpose LCD Display Controllers feature Arm^® Cortex^®-M4 processor with FPU and an operating frequency range of 1MHz to 160MHz. These display controllers offer a 6MHz to 12MHz external high-speed oscillator, 6MHz to 10MHz external high-speed clock input, and 10MHz internal high-speed oscillator. The LCD display controllers feature a gain-selectable Operational Amplifier (OPAMP) and 12-bit Analog-to-Digital-Converter (ADC) with a maximum conversion time of 91µs and a self-diagnosis support function. These LCD display controllers offer internal memory of 24KB RAM, 128KB to 256KB code flash rewritable up to 100,000 times, and 32KB data flash rewritable up to 100,000 times. The TXZ+ LCD display controllers operate within the -40°C to 105°C temperature range. Typical applications include motors, major appliances using motors, and industrial equipment.

Features

Arm^® Cortex^®-M4 processor with FPU:
- 1MHz to 160MHz operating frequency range
- Memory Protection Unit (MPU)
Low-power consumption mode:
Operating voltages:
- 2.7V to 5.5V
- 4.5V to 5.5V (all Functions)
- 2.7V to 4.5V (without OPAMP and ADC)
- IDLE, STOP1 low-power consumption operation
-40 to 105°C operating temperature range
Internal memory:
- 128KB to 256KB code flash rewritable up to 100,000 times
- 32KB data flash rewritable up to 100,000 times
- Data flash is rewritable in parallel with instruction execution
- 24KB RAM with parity
Clock:
- 6MHz to 12MHz (ceramic and crystal) external high-speed oscillator
- 6MHz to 10MHz external high-speed clock input
- 10MHz Internal High Speed Oscillator (IHOSC1) with user trimming function
- 160MHz output (system clock) PLL
Abnormal system clock detection with Oscillation Frequency Detection (OFD)
8 level generate interrupts and reset outputs Voltage Detection (LVD)
Interruption:
- External factors: 8 to 20 (external pins factors: 10 to 32 pins, with DNF)
- Internal factors: 80 to 100
I/O ports:
- 31 to 87 (Input:2 and Output:1)
- 5V-tolerant, open-drain, and pull-up/-down
On-chip debug (JTAG/SW) and NBDIF(RAM monitor)
Trigger Selector (TRGSEL)

Expand Trigger request for DMAC and Timer
1 unit DMA Controller (DMAC):
- DMA requests: 26 to 32 factors, internal/external triggers
CRC32, CRC16 CRC Calculation Circuit (CRC)
3 to 4 channels asynchronous serial interface (UART):
- 5Mbps(max), FIFO (transmission 8-stage and reception 8-stage)
1 to 2 channels Serial Peripheral Interface (TSPI)
- SIO/SPI mode, 10MHz(max), FIFO (transmitter: 16bitx8 and receive: 16bitx8)
I²C Interface:
- 1 to 2 channels and multi master I²C Interface (I²C)
- 1 to 2 channels multi-master I²C Interface Version A (EI2C) and supports 10bit Slave addressing
8 to 22 inputs in 3 units 12-bit Analog-to-Digital-Converter (ADC):
- 91µs conversion time
- Self-diagnosis support function
3 units gain-selectable Operational Amplifier (OPAMP)
1, 3 channels Advanced Programmable Motor Control Circuit (A-PMD):
- 3-phase complementary PWM output and synchronized with ADC
- PFC control: support 3-phase interleaved PFC
- Emergency stop function by external inputs (EMG pin and OVV pin)
1 channel Advanced vector engine plus (A-VE+)
0 to 1, 3 channels Advanced Encoder input circuit (32-bit) (A-ENC32)
32-bit Timer Event Counter (T32A)
1 channel Watchdog timer (SIWDT)

Applications

Motors
Major appliances using motors and industrial equipment

Toshiba TXZ+ General Purpose LCD Display Controllers

Features

Applications

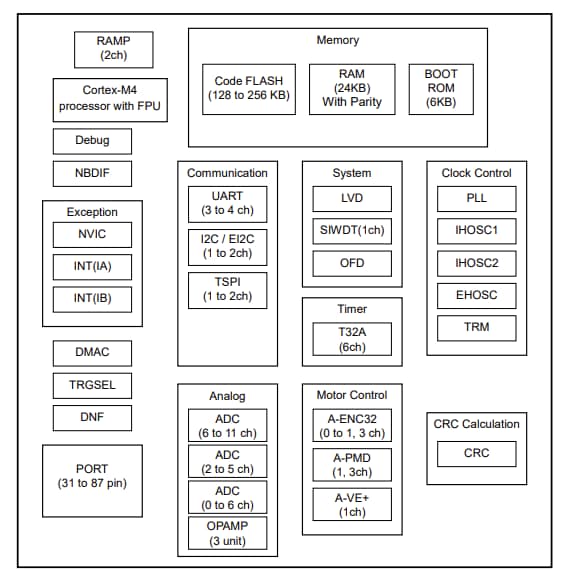

Block Diagram
