Toshiba TPD4163K/TPD4164K Intelligent Power Devices

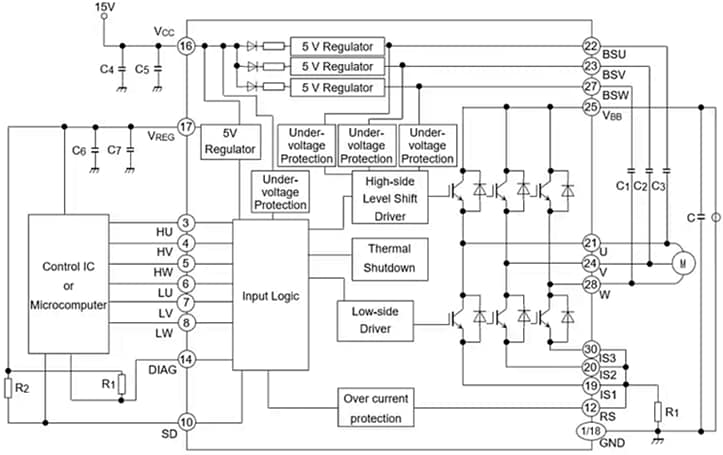

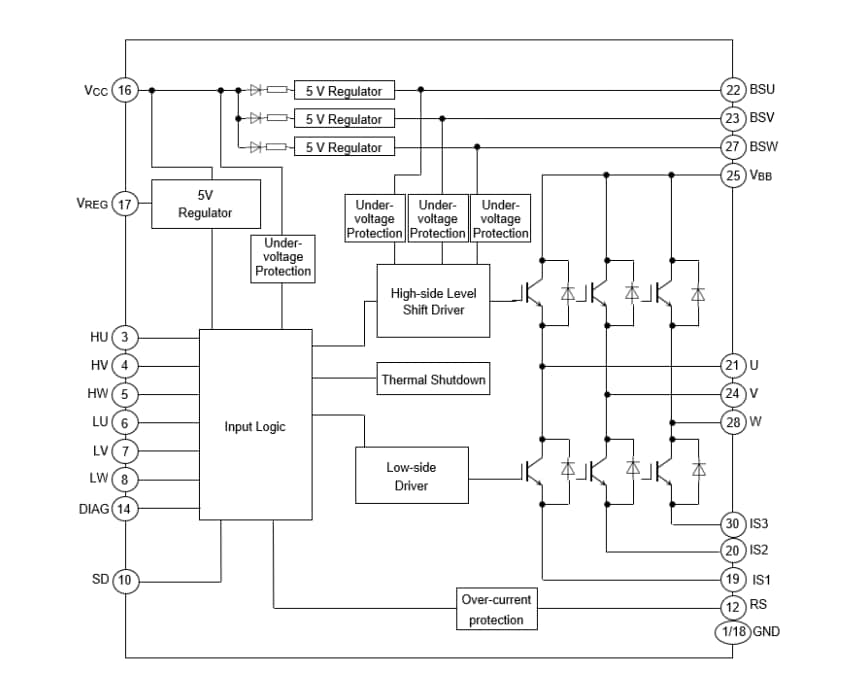

Toshiba TPD4163K/TPD4164K Intelligent Power Devices are designed for brushless DC motor drive applications and utilize high-voltage pulse width modulation (PWM) control. These power devices are designed as three-shunt resistor circuits and are fabricated by a high-voltage silicon-on-insulator (SOI) process. Toshiba TPD4163K/TPD4164K Intelligent Power Devices contain level shift high-side drivers, low-side drivers, IGBT outputs, FRDs, and protective functions. These modules are ideal for overcurrent circuits, undervoltage protection circuits, and thermal shutdown circuits. Additional features include built-in bootstrap diodes, built-in 5V regulators, and a three-phase bridge output using IGBTs.
