Toshiba TPD2017FN Low-Side Intelligent Power Switch

Toshiba TPD2017FN Low-Side Intelligent Power Switch is a low-side, 8-channel switch array with an integrated active clamp circuit and N-channel MOSFETs, ideal for motors, solenoids, and lamp drives. The TPD2017FN can be driven directly from CMOS, TTL logic circuitry, or a microcontroller to drive a power load. The device can be operated in parallel mode and includes built-in protection against over-temperature and over-current.

The Toshiba TPD2017FN Low-Side Intelligent Power Switch is offered in an SSOP30 (300mil) package with a -40°C to +110°C operating temperature range.

Features

8-channels with integrated N-channel MOSFETs and active clamp circuit
Supports driving the power load directly
Built-in protection against over-temperature and over-current
8-channel device enables space-saving design

Supports low 2.7V voltage operation
Low on-resistance; 0.55Ω @ V_DD = 5V, I_OUT = 0.5A, Tj = 25°C (per channel)
Supports parallel operation
SSOP30 (300mil) package

Applications

Programmable logic controller for industrial use
Driving resistant or inductive loads

Specifications

2.7V to 5.5V operating supply voltage (V_DD(opr))
1.8mA supply current (I_DD(OFF))
3.1mA supply current, all outputs open (I_DD(ON))
10μA output leakage current (I_OL)
1.5A typical over current protection (I_OC)
3.0ms typical over current protection operating time (t_OFF-DUTY)

70°C/W thermal resistance (R_{th (j-a)})
Over temperature detection
- +175°C temperature (T_SD)
- +15°C Hysteresis (ΔT_SD)
1.8W power dissipation (P_D)
-40°C to +110°C operating temperature range (T_opr)

Toshiba TPD2017FN Low-Side Intelligent Power Switch

Features

Applications

Specifications

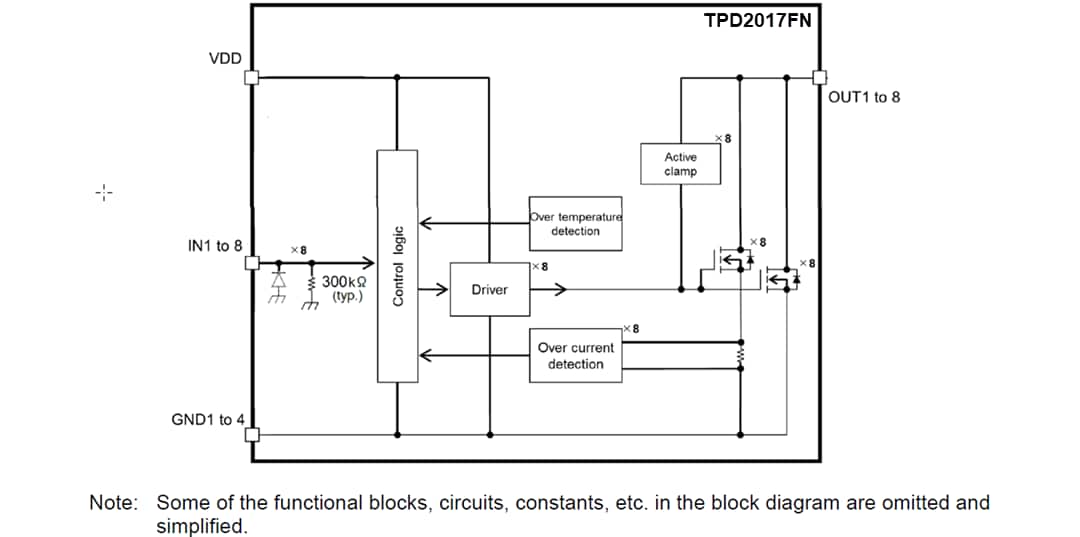

Block Diagram

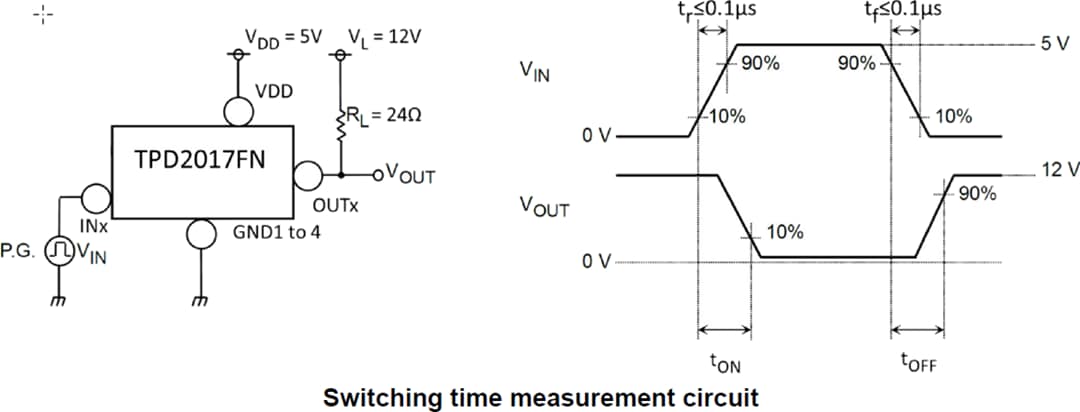

Test Circuit

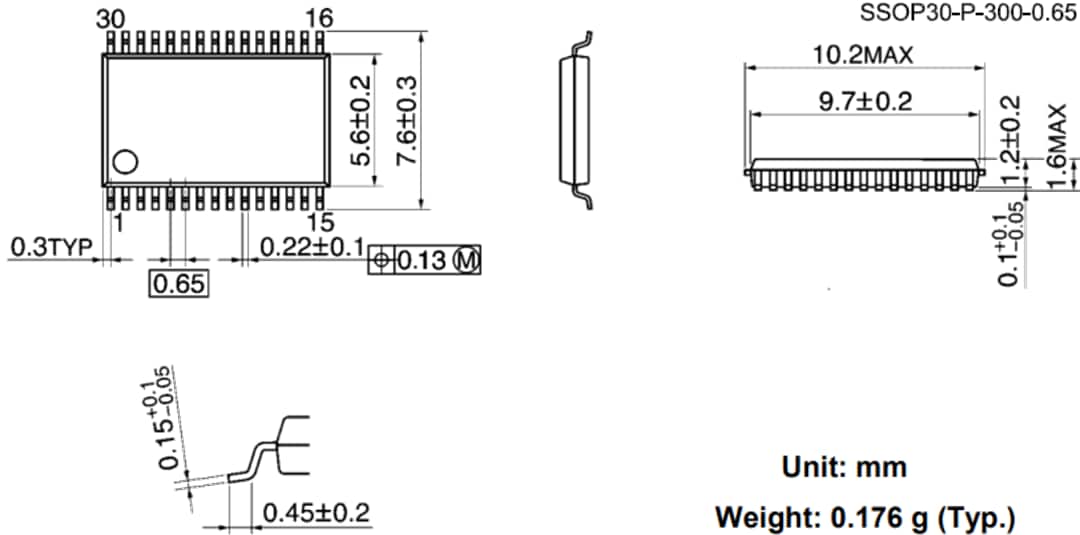

Package Outline
