Toshiba TLX9160T 1500V AEC-Q101 Photorelay

Toshiba TLX9160T 1500V AEC-Q101 Photorelay consists of an infrared emitting diode optically coupled to a photo-MOSFET in a SO16L-T package. The TLX9160T implements a high voltage MOSFET between output terminals. With a creepage distance on the detector side of 5mm or more, the Toshiba TLX9160T Photorelay is ideal for automotive control applications with a battery voltage of 1000V or less in an environment with a pollution degree.

Features

Normally open (1-Form-A) device
1500V (min) peak off-state voltage
3mA (max) trigger LED current
50mA (max) on-state current
250Ω (max)(@ t <1s) on-state resistance
5000V_rms (min) isolation voltage

8mm (min) clearance distance
8mm (min) creepage distance
0.4mm (min) insulation thickness
CTI>600 outer resin
10.3mm x 10.0mm x 2.45mm SO16L-T package
AEC-Q101 qualified

Toshiba TLX9160T 1500V AEC-Q101 Photorelay

Features

Pin Configuration

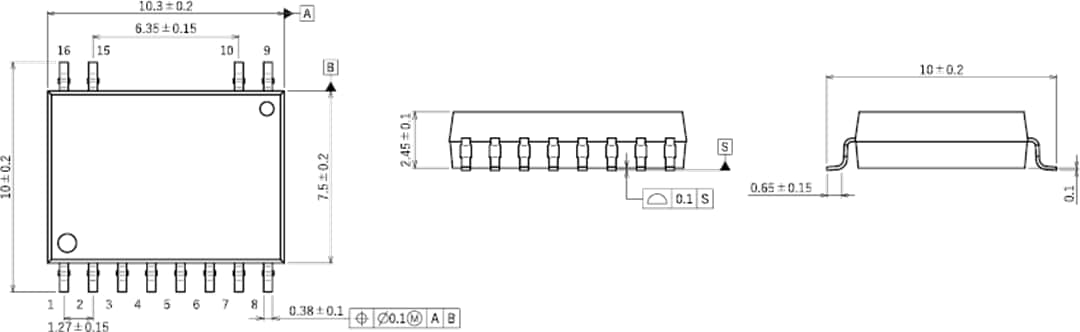

Package Outline
