Toshiba TLP3910 Photovoltaic Output Photocoupler

Toshiba TLP3910 Photovoltaic Output Photocoupler consists of a high-output GaAlAs (Aluminum Gallium Arsenide) LED optically coupled with a high-speed photodetector. The photodiodes are connected in series, making the TLP3910 suitable for MOSFET gate drive applications which require isolation. This device is also capable of driving higher voltage MOSFETs due to its improved V_OC. The TLP3910 provides a 5000Vrms (minimum) high isolation voltage that satisfies the reinforced insulation class according to international safety standards.

The Toshiba TLP3910 Photovoltaic Output Photocoupler is available in a SO6L package and features a -40°C to +125°C operating temperature range.

Features

14V minimum open voltage (V_OC)
12μA minimum short-circuit current (I_SC)
0.5mA typical trigger LED current (I_FT)
Switching characteristics
- 0.3ms typical turn-on time; 1.0ms maximum (t_on)
- 0.1ms typical turn-off time; 0.5ms maximum (t_off)
0.8pF total input-to-output capacitance (C_S)
5000Vrms minimum isolation voltage (B_VS)

Safety standards
- UL-recognized: UL 1577, File No.E67349
- cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
- VDE-approved: EN 60747-5-5
SO6L package
RoHS compliant

Applications

Factory automation
Measurement instrumentation

MOSFET gate drivers
Programmable Logic Controllers (PLCs)

Toshiba TLP3910 Photovoltaic Output Photocoupler

Features

Applications

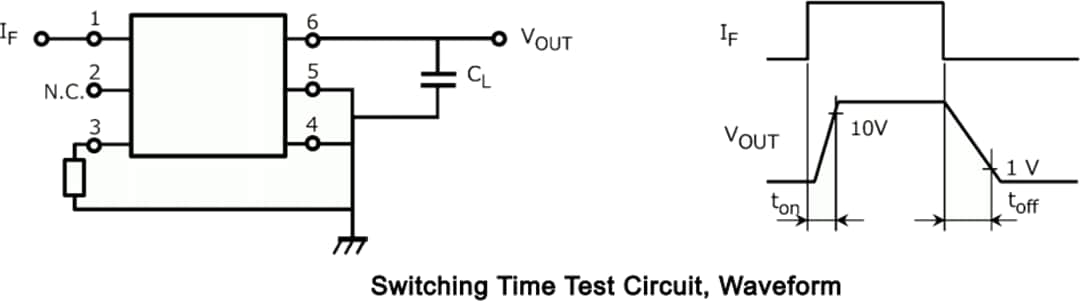

Test Circuit & Waveform

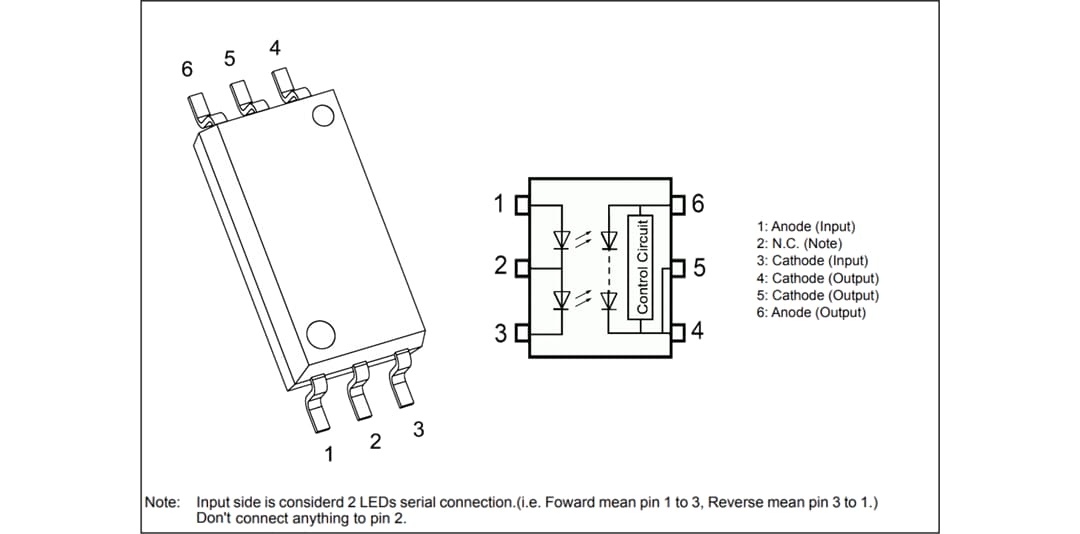

Pin Assignment

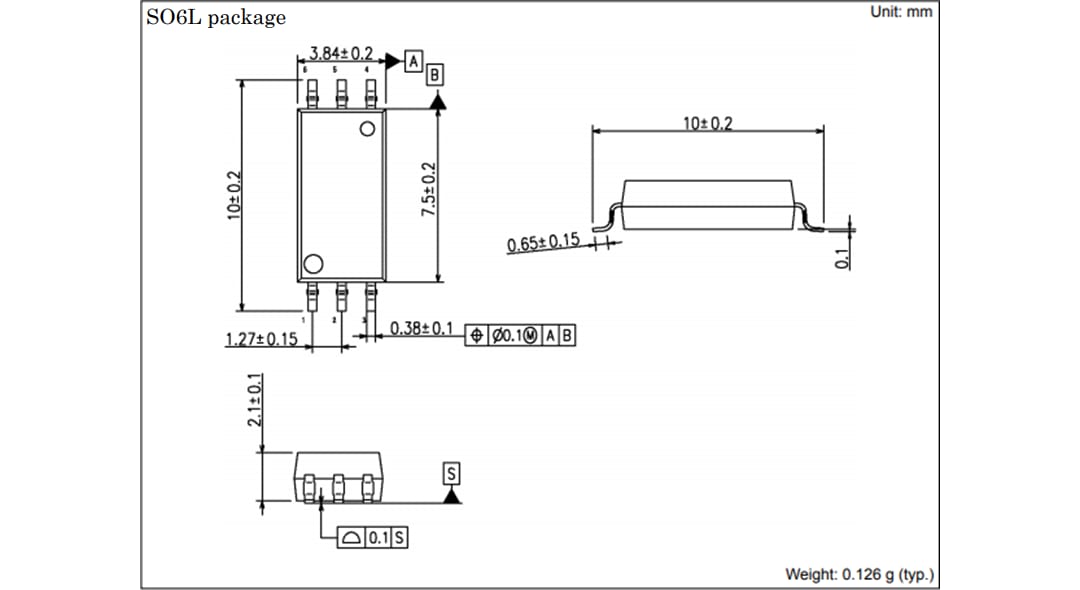

Package Outline
