Toshiba TLP348x Optocoupler Photorelays

Toshiba TLP348x Optocoupler Photorelays consists of a photo MOSFET that is optically coupled to an infrared Light Emitting Diode (LED). These photorelays feature a very small ON-state resistance and a high ON-state switching current ranging from 2A to 4.5A. The TLP348x photorelays are ideally used in Automatic Test Equipment (ATE), measuring instruments, high-speed logic IC testers, and high-speed memory testers. These devices are halogen-free and are housed in a P-SON4 package.

Features

TLP3480 photorelays:
- 25mΩ (typical) and 50mΩ (max) ON-state resistance
- 4.5A (max) ON-state current
- 30V (min) OFF-state output terminal voltage
TLP3481 photorelays:
- 45mΩ (typical) and 100mΩ (max) ON-state resistance
- 3A (max) ON-state current
- 60V (min) OFF-state output terminal voltage

TLP3482 photorelays:
- 200mΩ (max) ON-state resistance
- 2A (max) ON-state current
- 100V (min) OFF-state output terminal voltage
3mA (max) trigger LED current
500V_rms (min) isolation voltage
Normally opened (1-Form-A)
Halogen-free

Applications

Automatic Test Equipment (ATE)
Measuring instruments

High-speed logic IC testers
High-speed memory testers

Toshiba TLP348x Optocoupler Photorelays

Features

Applications

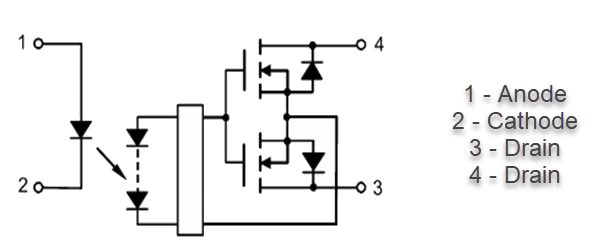

Internal Circuit
